Garmin GSD 28 Advanced Sonar Module – 010-02797-00 | OEM

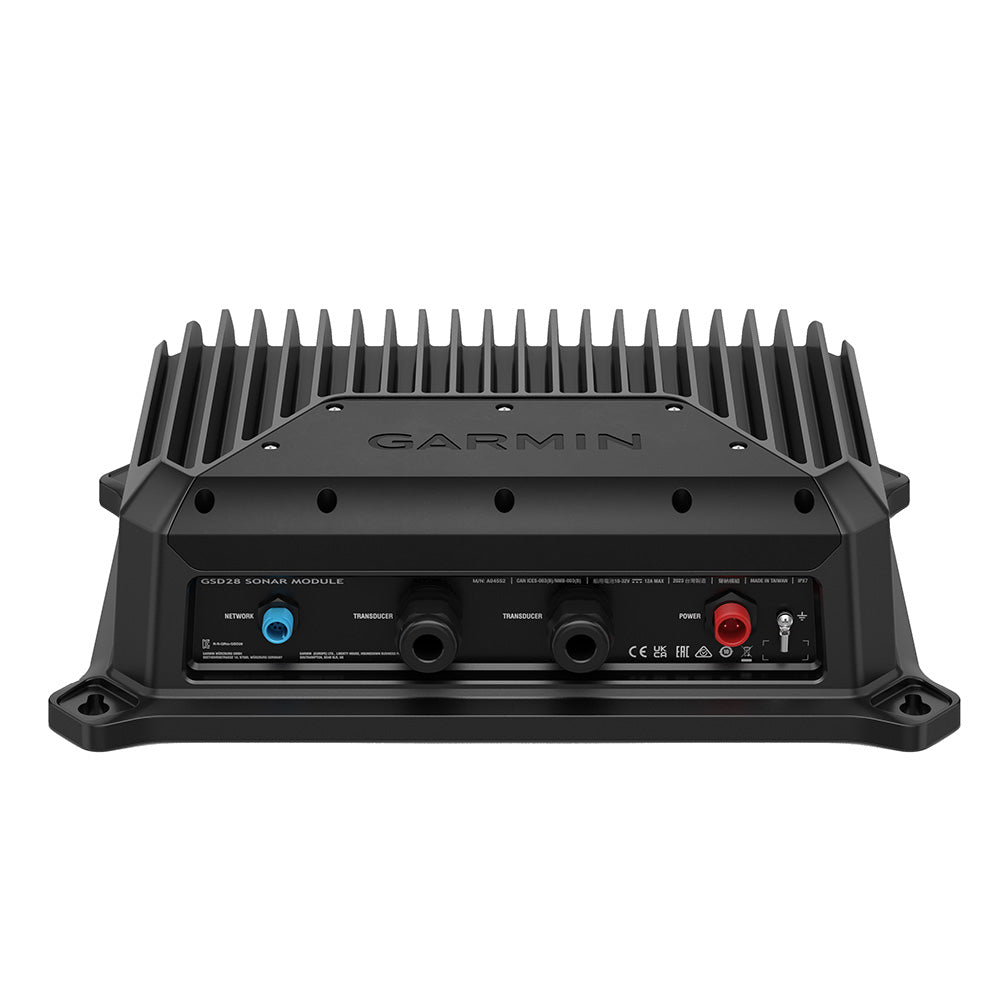

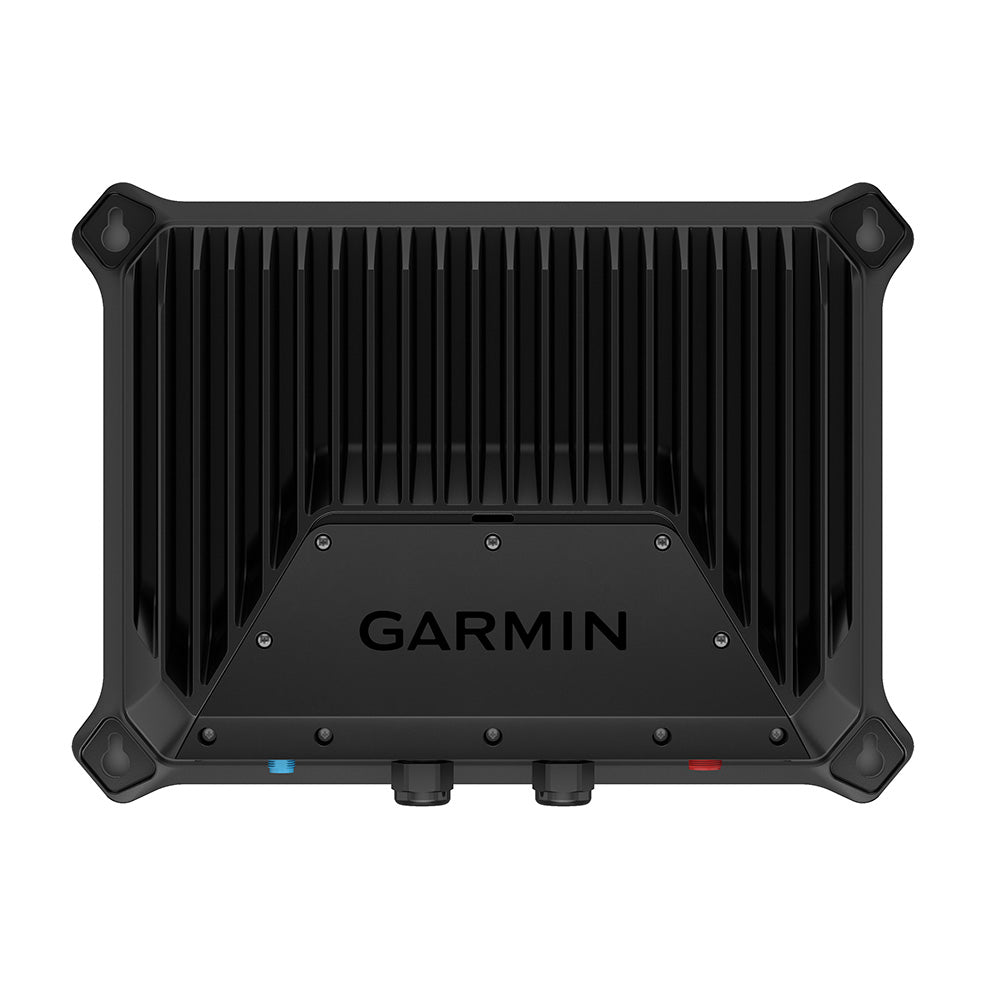

Garmin GSD 28 Advanced Sonar Module – 010-02797-00

See what's down there. Catch what's down there. The Garmin GSD™ 28 Advanced Sonar Module (010-02797-00) takes sportfishing to extreme depths with a high-powered sonar module built with the features that improve your chances of success.

Key Features

• Engineered for offshore sportfishing
• See sonar faster with Garmin RapidReturn™ technology
• Crisp, clear fish targets and excellent target separation with xCHIRP technology
• Heave compensation greatly reduces wave and swell from bottom returns

Garmin RapidReturn Sonar

Garmin's fastest deep-water scrolling sonar delivers 2 to 6 times the ping rate of the GSD™ 26, so captains can make fast, informed decisions about what's below the boat.

xCHIRP Technology

Easily tell bait from sport fish with Garmin's clearest traditional sonar fish arches and excellent target separation, plus smooth bottom returns and precise targeting at extreme depths.

Heave Compensation

When seas get rough, use the MSC™ 10 external satellite compass (sold separately) to greatly reduce wave and swell in the sonar returns.

Transducer Support

Compatible with a wide range of Garmin and AIRMAR® transducers (sold separately).

Retrofitting

The GSD 28 is ideal for retrofitting boats with existing bare wire transducers.

Performance

• Sonar power: outputs 300 watts to 3 kW at extreme depths
• CHIRP support: dual-channel CHIRP (up to 3 kW per channel)
• Operating range: 25 to 250 kHz frequency range
• Built to last: rated for harsh marine environments with an IPX7 water rating

General Specifications

• Case material: fully gasketed aluminum housing, steel back panel, plastic access panel
• Dimensions: 10.7" × 14.4" × 4.0" (27.06 cm × 36.66 cm × 10.1 cm)
• Weight: 14.13 lbs (6.4 kg)
• Water rating: IPX7
• Temperature range: 5° F to 158° F (-15° C to 70° C)

Electrical

• Power input: 10-32 V
• Power usage: 120 W maximum
• Fuse: 15A

Sonar

• Frequencies supported: dual channel CHIRP, 25-250 kHz (transducer dependent)
• Transmit power: 300W–3kW RMS (transducer dependent)
• Maximum depth: 10,000 ft (3,048 m)
• xCHIRP: yes
• RapidReturn: yes

Connections

• Garmin Marine Network ports: Garmin BlueNet
• Sonar connections: 2 bare wire

In the Box:

• GSD 28
• Power cable
• Garmin BlueNet™ marine network cable (6 ft) with legacy network adapter
• Field-installable adapter kit for the Garmin BlueNet network
• Mounting hardware
• Documentation

Product Details

• Manufacturer: Garmin
• Part Number: 010-02797-00
• Product Type: Sounder/Sonar Modules
• Condition: New

Important Fitment Information

Please verify that this product is compatible with your boat and your Garmin equipment before ordering. Always follow Garmin's installation instructions.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Final Sale: This item is final sale and not eligible for return. Please confirm compatibility before ordering. Questions? Call 954-946-1451.
