Garmin GPSMAP 943xsv Combo GPS/Fishfinder GN+ with GT23-TM – 010-02366-61/GT23M | OEM

Garmin GPSMAP 943xsv Combo GPS/Fishfinder GN+ with GT23-TM – 010-02366-61/GT23M

Get a sharper view from your connected helm with the Garmin GPSMAP 943xsv Combo GPS/Fishfinder with Garmin Navionics+ and GT23-TM Transducer (010-02366-61/GT23M). With a sleek design, powerful processing and an upgraded IPS display, this advanced 9” chartplotter/fishfinder combo integrates seamlessly into your Garmin marine system, with built-in sonar and preloaded Garmin Navionics+™ charts.

Key Features

• Easy integration with more engines
• Connect compatible third-party devices with OneHelm™ digital switching
• Build your marine system with the best of network connectivity
• Navigate any waters with preloaded Garmin Navionics+™ charts and mapping1
• See below your boat with built-in sonar
• Manage your marine experience from nearly anywhere2

Ultra High-Definition Scanning Sonar

Built-in Ultra High-Definition SideVü and ClearVü™ scanning sonars, with vivid, high-contrast color palettes, help you tell fish from structure. The GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar.

Live Sonar Support

Pair it with Panoptix™ or LiveScope™ live sonar (transducer required, sold separately) to see all around your boat in real time.

Faster, Sharper, Smarter

Added processing power, a slim edge-to-edge glass design and a smaller footprint make it easy to retrofit into a wider range of dash configurations.

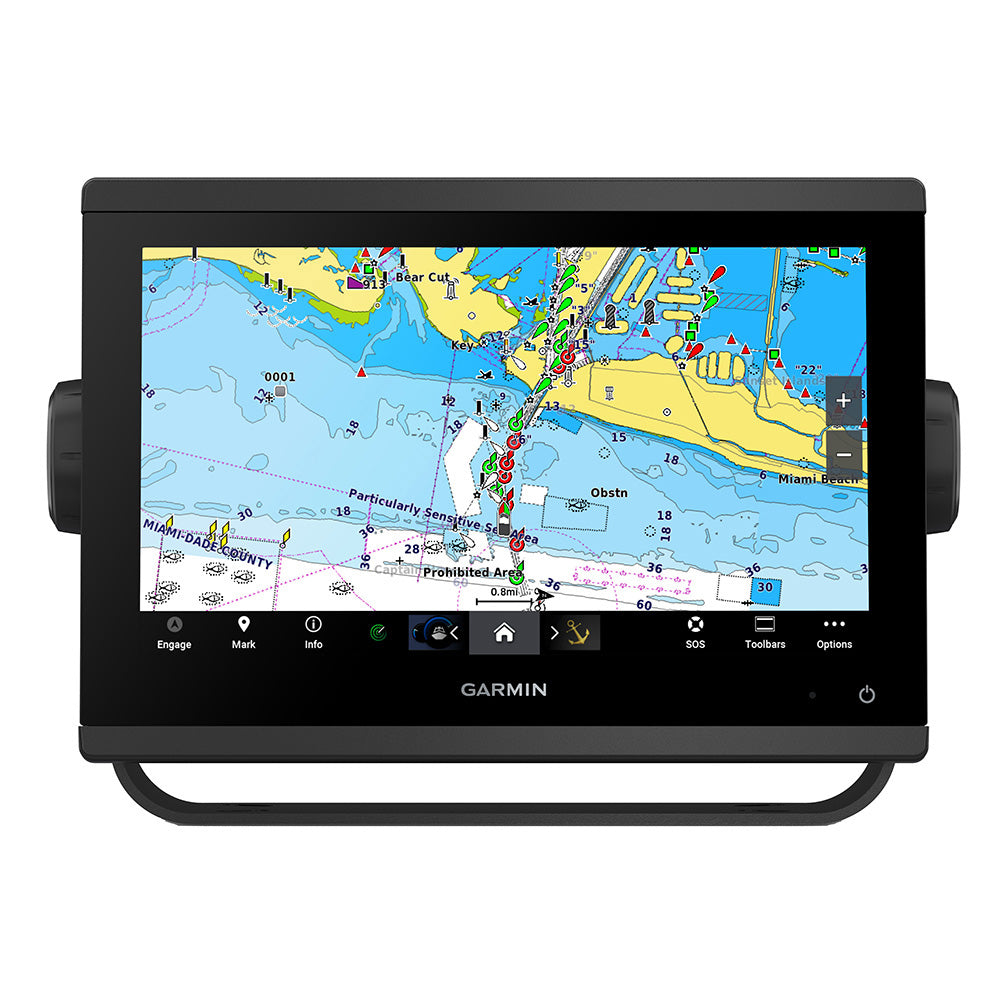

Charts and Mapping

Built-in Garmin Navionics+ integrated coastal and inland mapping delivers outstanding coverage and detail, with Auto Guidance+™ technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters. An optional Garmin Navionics Vision+™ premium subscription adds downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.

Sailing Features

• Garmin SailAssist™: laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields, tide/current/time slider, wind angle, set and drift, wind speed, polars and more3
• Sailing polars: the polar table shows how fast you should be going at a given wind angle and speed, so you know when to adjust sail trim

Networking and Connectivity

• Garmin Marine Network: share maps, user data, radar and IP camera video among multiple compatible Garmin devices
• NMEA 2000® and NMEA 0183: connect compatible autopilots, digital switching, weather, the Fusion-Link™ audio system, media, VHF, AIS and more on one screen
• ActiveCaptain® app: built-in Wi-Fi® pairs with the free app for the OneChart™ feature, smart notifications, software updates, Helm, Garmin Quickdraw™ Community data and more4
• Integrated ANT® technology: connect quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls
• Engine connectivity: connect to different kinds of engines, including select Yamaha engines
• OneHelm feature: brings the operations of select third-party devices, such as EmpirBus™ digital switching, onto one screen
• inReach® messaging: pair your inReach satellite communicator5 and type custom messages with the on-screen keyboard; pick from your contacts or enter an email, inReach address or phone number, with messages grouped by conversation

What's In The Box

• Chartplotter
• microSD preinstalled
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable
• Bail mount with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

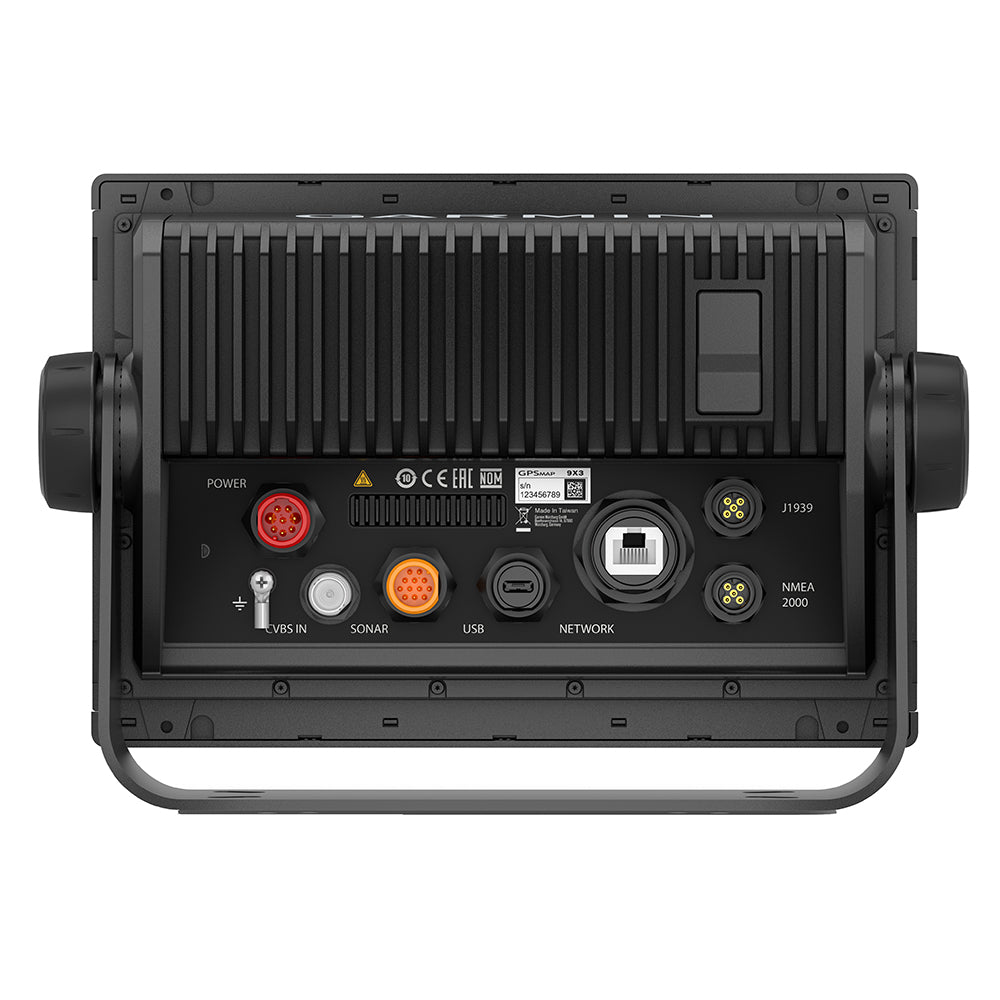

Connections

• NMEA 2000® ports: 1
• NMEA 0183 input ports: 1
• NMEA 0183 output (TX) ports: 1
• Video input ports: 1 (BNC composite)
• J1939 ports: 1
• Garmin Marine Network ports: 1
• 12-pin transducer ports: 1
• USB ports: 1
• BNC external GPS antenna port: 1
• Bluetooth® pairing
• ANT+ connectivity
• Garmin Wi-Fi Network (local connection)

GPSMAP x3 chartplotters are preloaded with Garmin Navionics+ offshore, coastal and inland water charts for the U.S. and Canada.

1On select models

2Requires ActiveCaptain app on your compatible smartphone paired to the GPSMAP 943xsv

3Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

4When paired with a compatible smartphone

5Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Product Details

• Manufacturer: Garmin
• Part Number: 010-02366-61/GT23M
• Product Type: GPS - Fishfinder Combos
• Condition: New

Specifications:

• Cartography Brand: Garmin Navionics+
• Included Transducer: GT-23M
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: Yes
• Box Dimensions: 5"H x 6"W x 12"L WT: 11.4 lbs

Important Fitment Information

Please verify that this product is compatible with your boat and your Garmin equipment before ordering. Always follow Garmin's installation instructions.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Final Sale: This item is final sale and not eligible for return. Please confirm compatibility before ordering. Questions? Call 954-946-1451.
