Garmin GPSMAP 9013 Premium Chartplotter with Worldwide Basemap – 010-03176-00

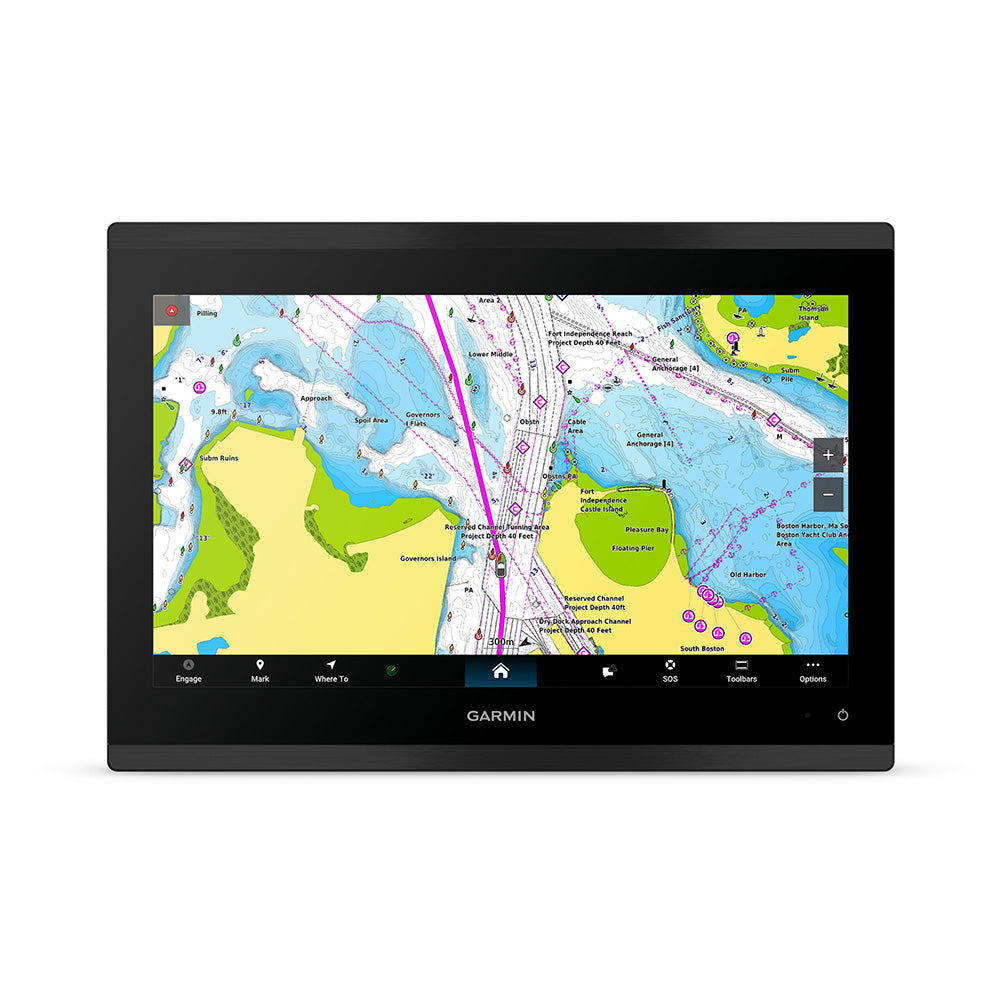

Paradise starts here. The Garmin GPSMAP 9013 Premium Chartplotter with Worldwide Basemap (010-03176-00) is an integrated 4K touchscreen chartplotter for captains and anglers who demand the best, with edge-to-edge clarity and premium design and materials for a luxurious glass helm.

Key Features

• Premium IPS sunlight-readable touchscreen display
• Up to 7 times faster processing power than previous generations
• Clarity like never before on a 4K display
• Supports Garmin Navionics+™ charts with Auto Guidance+™ technology1
• Gigabit speeds on the Garmin BlueNet™ network
• Network with multiple chartplotters, cameras and more

Performance and Design

The 4K IPS sunlight-readable touchscreen and edge-to-edge design deliver a seamless, modern look. Processing power is 7 times faster than previous generations, so charts draw quickly and Auto Guidance+ routes1 calculate with lightning speed with an optional Garmin Navionics+ subscription.

Garmin BlueNet Network and Entertainment

Build extensive networks with multiple chartplotters, cameras, radars and sonars at gigabit speeds. Audio and video integrations let you show and hear the same video across the screens and speakers on your network.

Garmin SailAssist™ and Sailing Polars

View laylines, race start line guidance, an enhanced wind rose, heading and course-over-ground lines, true wind data fields, a tide/current/time slider and more. The polar table shows key data so you know whether to adjust sail trim.

Connect Your Ecosystem

Monitor, automate and control your vessel through digital system integrations. The chartplotter uses the NMEA 2000® network to connect to your compatible accessories.

• Software updates: wireless updates through the ActiveCaptain® app on your compatible smartphone or tablet
• Engine monitoring: extensive engine integration to keep tabs on performance
• Custom look: manufacturers can customize the homepage layout and splash screen

Navigate

• Mapping: optional Garmin Navionics+ charts with Auto Guidance+ technology, daily updates and more1 (subscription required)
• Premium charts: support for Garmin Navionics Vision+™ charts with premium relief shading and satellite imagery
• Precise location: built-in dual-frequency 10 Hz GPS
• Autopilot: control the autopilot from any compatible chartplotter on the network

Integrate

• Cameras: extensive camera support and control, with footage right on the chartplotter
• Smartwatch control: connect with your compatible Garmin smartwatch
• Wireless connectivity: integrated Bluetooth® and ANT® technologies
• Fish Mapping: comprehensive fishing data with the Fish Mapping™ feature from SiriusXM® Radio (accessory purchase and subscription required)
• Voice commands: control the chartplotter with spoken commands through your compatible headset or quatix® smartwatch
• Weather-resistant: the GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating

What's In The Box

• GPSMAP 9013 premium chartplotter
• Power cable
• Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® Network
• Bail mount with knobs
• Flush mount kit
• Protective cover
• Trim piece snap covers
• Documentation

General Specifications

• Dimensions: 13.2" x 9.19" x 3.56"
• Weight: 9.1 lbs
• Water rating: IPX7
• Touchscreen: yes
• Display type: 4K, IPS; Mini LED (local dimming) backlight
• Display size: 11.57" x 6.50"; 13.27" diagonal
• Display resolution: 3840 x 2160 pixels
• Mounting options: bail, flat or flush
• Input: touchscreen
• Polarized lens viewability: yes

Maps and Memory

• Data cards: 2 microSD™ cards (on rear of product)
• Supports USB card reader: yes
• Waypoints: 5,000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100

Sensors

• GPS, GLONASS, GALILEO and BEIDOU: yes
• Built-in receiver: yes, 10 Hz
• NMEA 2000 and NMEA 0183 compatible: yes
• Supports WAAS: yes
• Supports multi-band, multi-constellation GPS: yes

Chartplotter Features

• SmartMode compatible, AIS, DSC: yes
• Supports Fusion-Link™ compatible radios: yes
• GCV black box sonar support: yes
• ActiveCaptain® compatible: yes
• Supports voice commands: yes
• GRID (Garmin Remote Input Device) and GRID 20 compatible: yes
• Wireless remote compatible: yes
• Sailing features and spoken audio alerts: yes
• OneHelm support: yes

Electrical

• Power input: 10 to 32 Vdc
• Typical current draw at 12Vdc: 3.6A
• Maximum current draw at 12Vdc: 4.14A
• Maximum power usage at 10Vdc: 44w

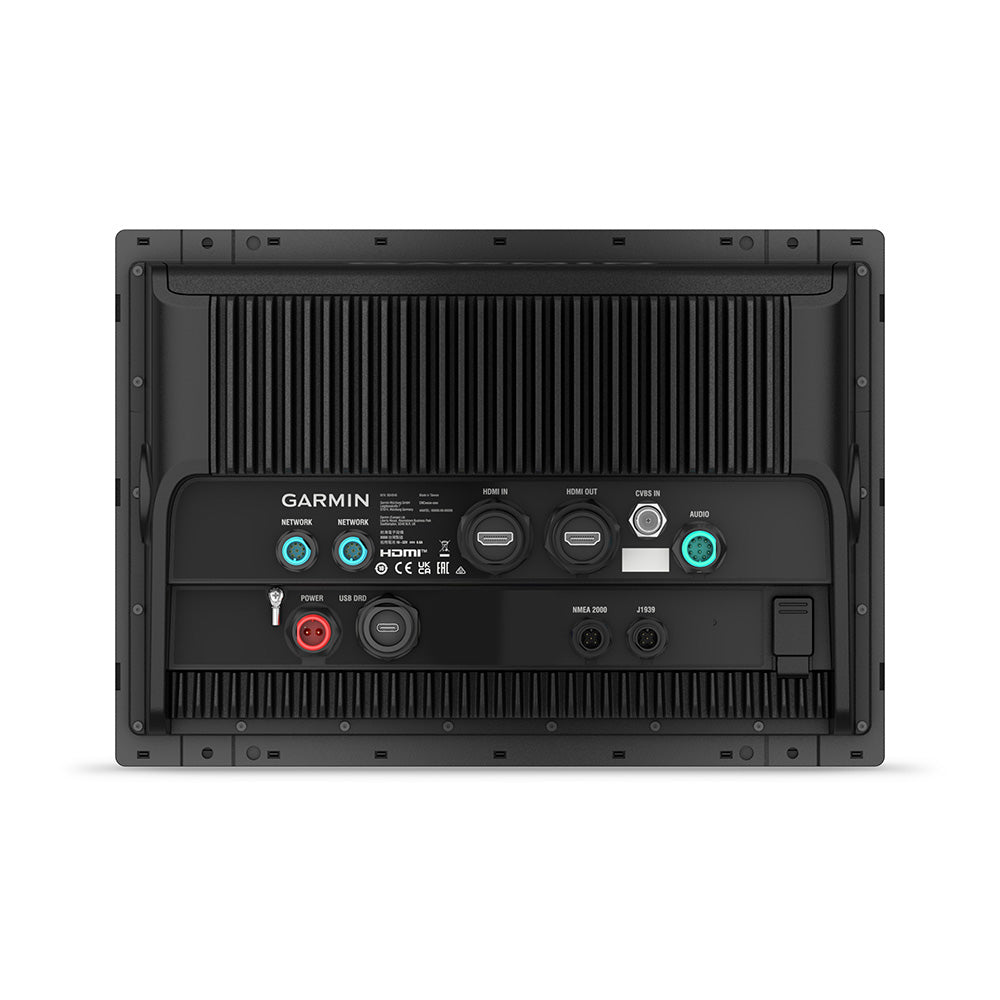

Connections

• NMEA 2000® ports: 1
• NMEA 0183 input (RX) ports: 1
• NMEA 0183 output (TX) ports: 1
• Video input ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
• Video output ports: 1 HDMI
• J1939 ports: 1
• Garmin BlueNet Network ports: 2
• USB ports: yes (1x USB-C)
• Bluetooth® pairing: yes
• ANT® connectivity: yes
• Garmin Wi-Fi Network (local connection): yes
• Wi-Fi frequency bands: 2.4 GHz and 5 GHz
• Audio output: yes

1Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

Product Details

• Manufacturer: Garmin
• Part Number: 010-03176-00
• Product Type: GPS - Chartplotters
• Condition: New

Specifications:

• Cartography Brand: Garmin Navionics+
• Internal/External Antenna: Internal
• Screen Size: 13"
• Touchscreen: Yes
• Box Dimensions: 9"H x 12"W x 17"L WT: 18.2 lbs
• UPC: 753759343521

Important Fitment Information

Please verify that this product is compatible with your boat and your Garmin equipment before ordering. Always follow Garmin's installation instructions.
