Garmin GPSMAP 743 Chartplotter GN+ – 010-02365-60 | OEM

Garmin GPSMAP 743 Chartplotter GN+ – 010-02365-60

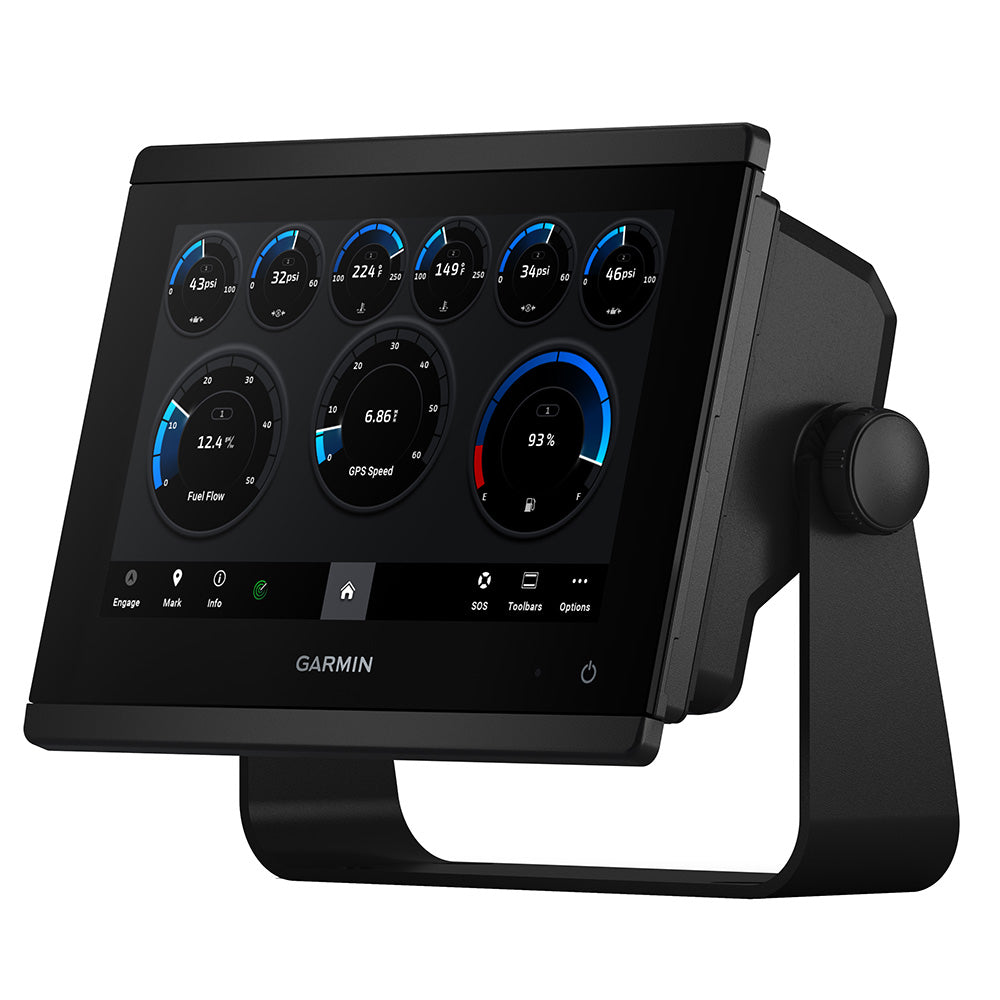

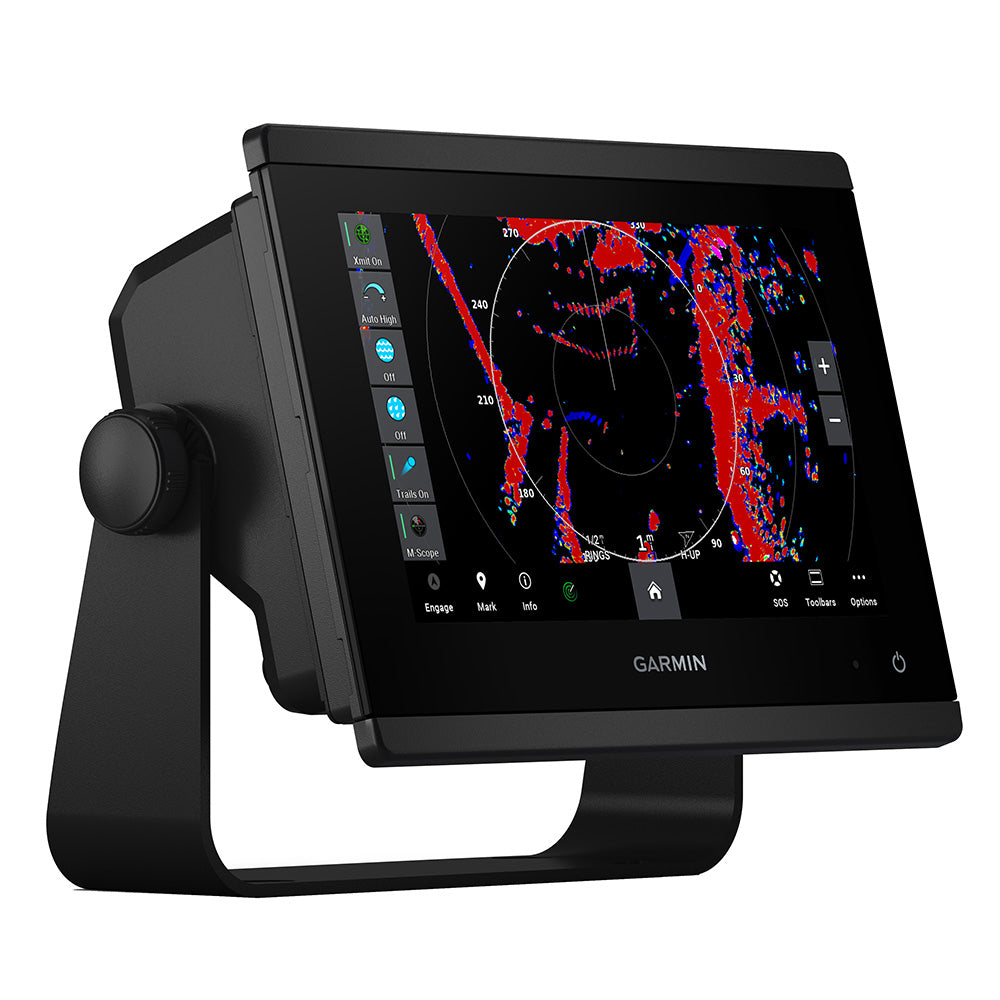

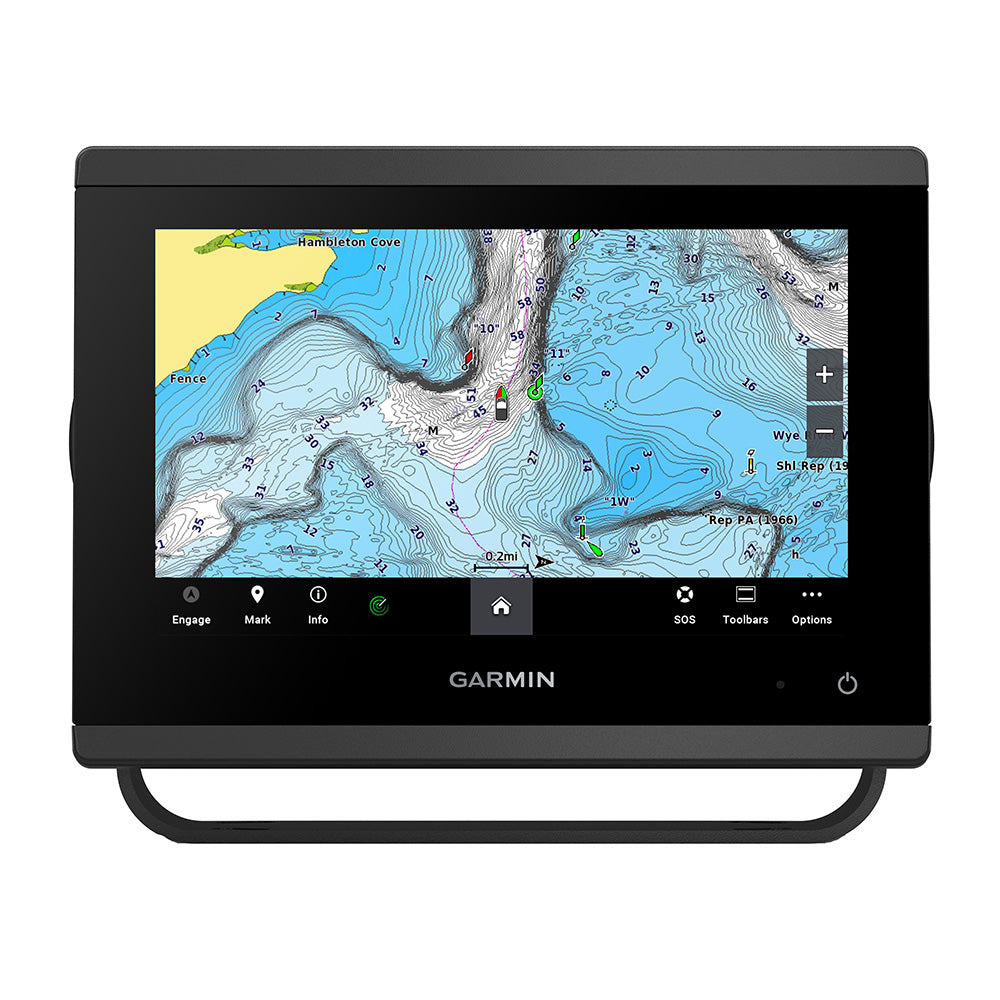

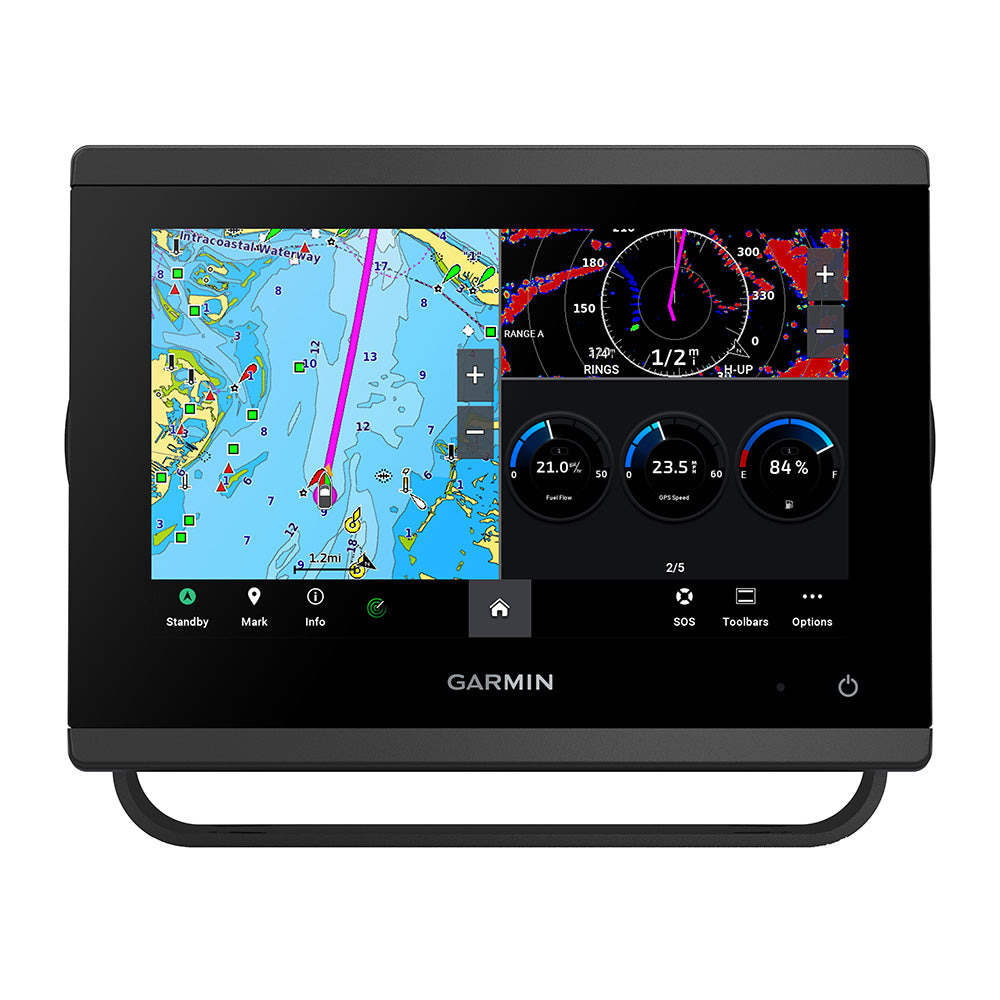

Get a sharper view from your connected helm with the Garmin GPSMAP 743 Chartplotter with Garmin Navionics+ (010-02365-60). Made for boaters who want premium features, maps and charts, its higher-resolution 7” display has 60% more pixels than previous-generation chartplotters, and its ultra-sleek design packs nearly double the processing power of previous GPSMAP devices.

Preloaded Garmin Navionics+™ coastal charts and inland mapping include Auto Guidance+™ technology to help you get where you're going with confidence, with support for optional Garmin Navionics Vision+™ premium content. Build out your system with compatible sonar, autopilots, radar, cameras and multimedia using HTML 5.0, NMEA 2000® and NMEA 0183 networking, J1939 for engines and the Garmin Marine Network. Add FrontVü™ forward-looking sonar (sold separately) to help avoid underwater obstructions ahead (its ability to help avoid forward collisions decreases as speed rises above 8 knots), or pair with compatible Garmin devices such as quatix® marine smartwatches, wind transducers and wireless remote controls.

Key Features

• Higher-resolution touchscreen with improved sunlight readability and 60% more pixels than previous-generation 7” units
• Nearly twice the processing power of previous-generation GPSMAP® devices, with 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed and COG data
• Slim display borders, edge-to-edge glass and a smaller footprint for easy retrofit into a wider range of dash configurations

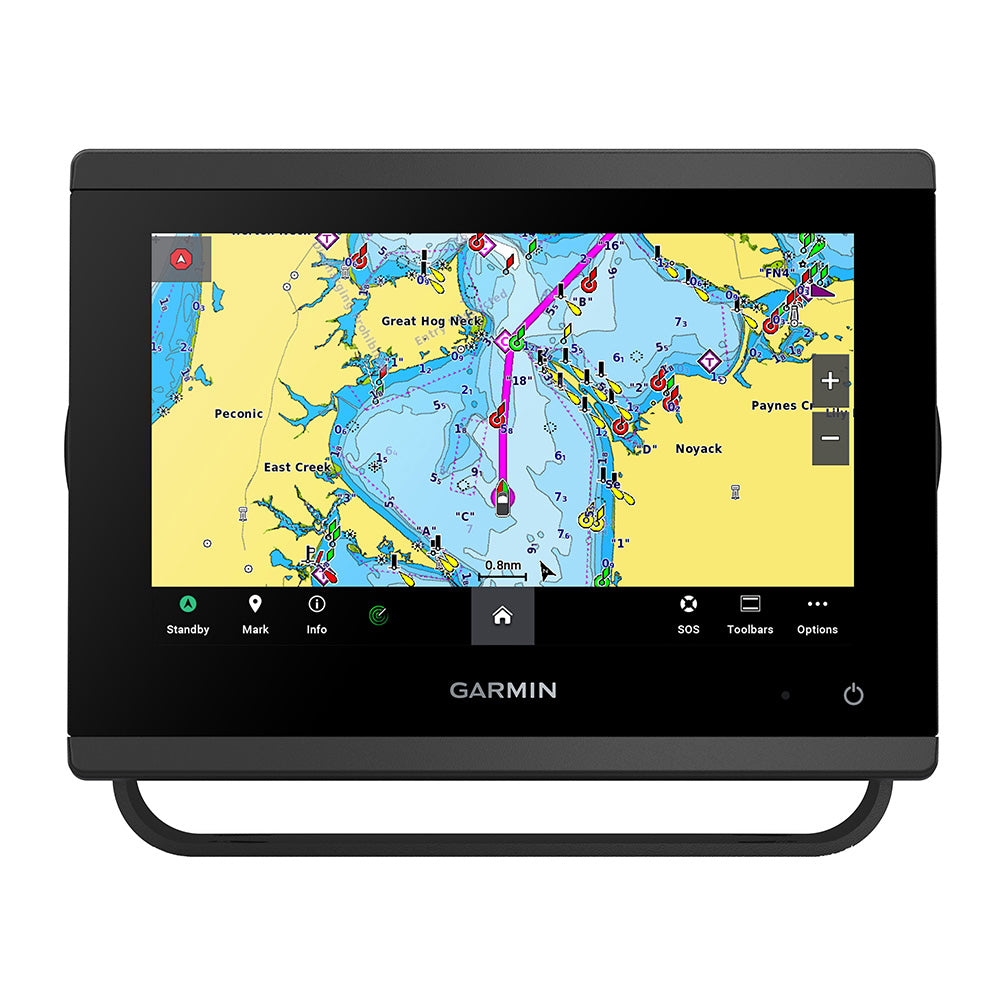

• Preloaded Garmin Navionics+™ coastal charts and inland mapping with Auto Guidance+™ technology, plus support for optional Garmin Navionics Vision+™ premium content

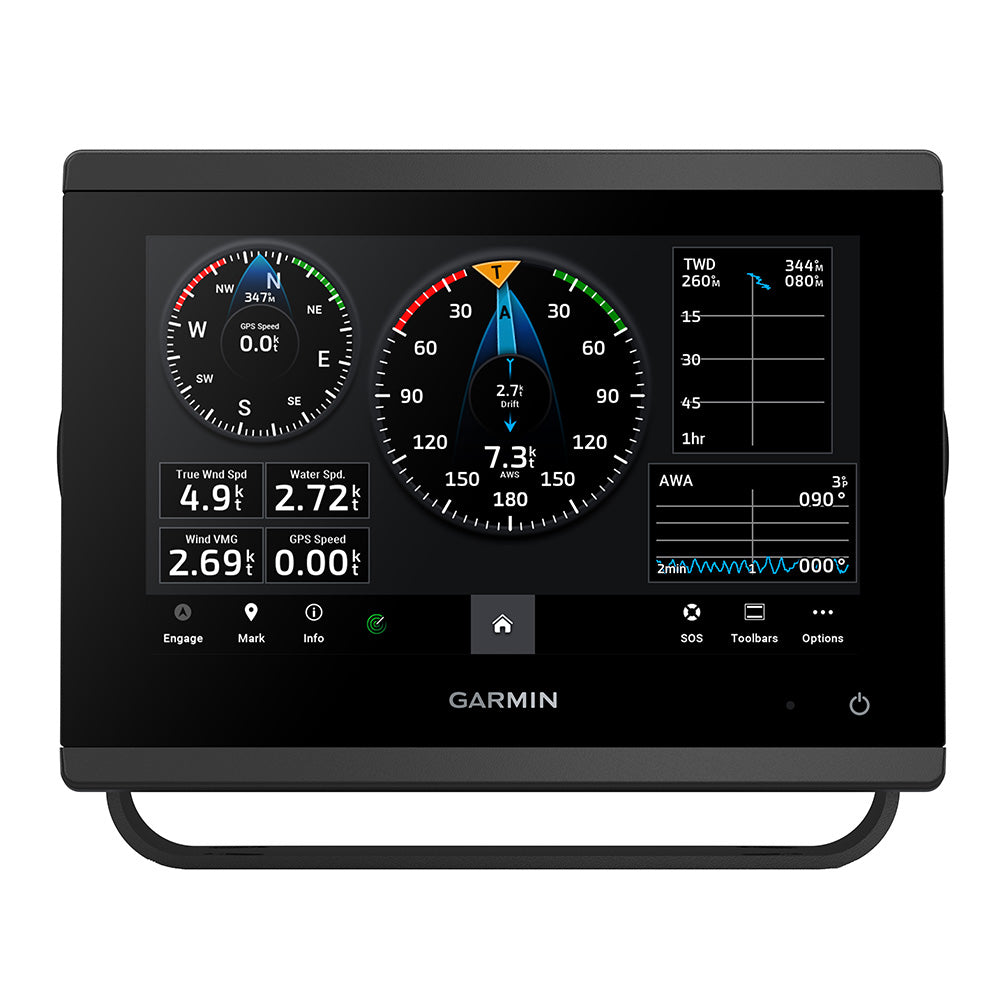

• Built-in Garmin SailAssist™ features, including laylines, race features, set and drift, wind data and more (requires a compatible wind transducer, sold separately)
• J1939 engine connectivity and the exclusive OneHelm™ feature for connecting compatible third-party devices such as EmpirBus™ digital switching

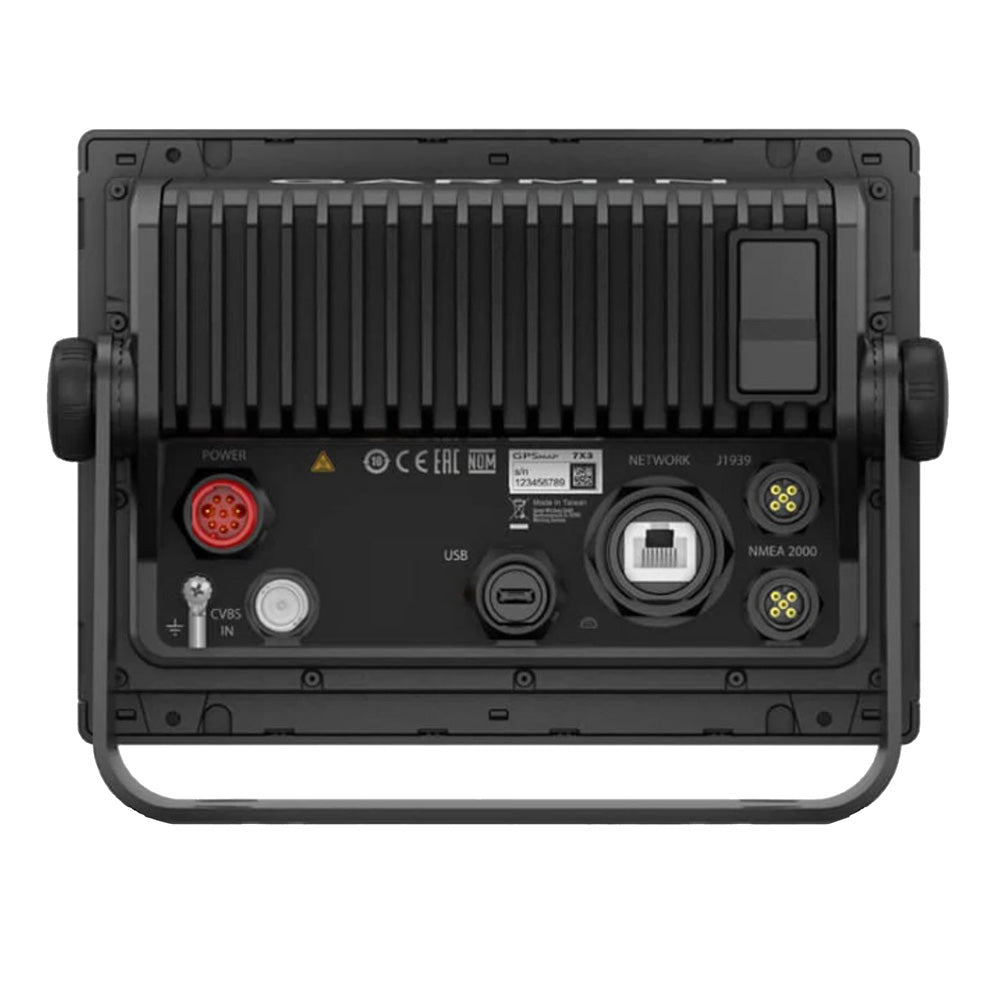

• Build your marine system with NMEA 2000® and NMEA 0183 networking and the Garmin Marine Network
• Built-in Wi-Fi® pairs with the free ActiveCaptain® app for the OneChart™ feature, smart notifications, software updates and more
• Integrated ANT® connectivity for compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls (sold separately)

What's In The Box

• Chartplotter
• microSD preinstalled
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable
• Bail mount with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

GPSMAP x3 chartplotters are preloaded with Garmin Navionics+ offshore, coastal and inland water charts for the U.S. and Canada.

Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.

Product Details

• Manufacturer: Garmin
• Part Number: 010-02365-60
• Product Type: GPS - Chartplotters
• Condition: New

Specifications:

• Cartography Brand: Garmin Navionics+
• Internal/External Antenna: Internal
• Screen Size: 7"
• Touchscreen: Yes
• Box Dimensions: 8"H x 8"W x 12"L WT: 5.8 lbs
• UPC: 753759285296

Important Fitment Information

Please verify that this product is compatible with your boat and your Garmin equipment before ordering. Always follow Garmin's installation instructions.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Final Sale: This item is final sale and not eligible for return. Please confirm compatibility before ordering. Questions? Call 954-946-1451.
