Simrad IS42 Smart Instrument Display – 000-13285-001

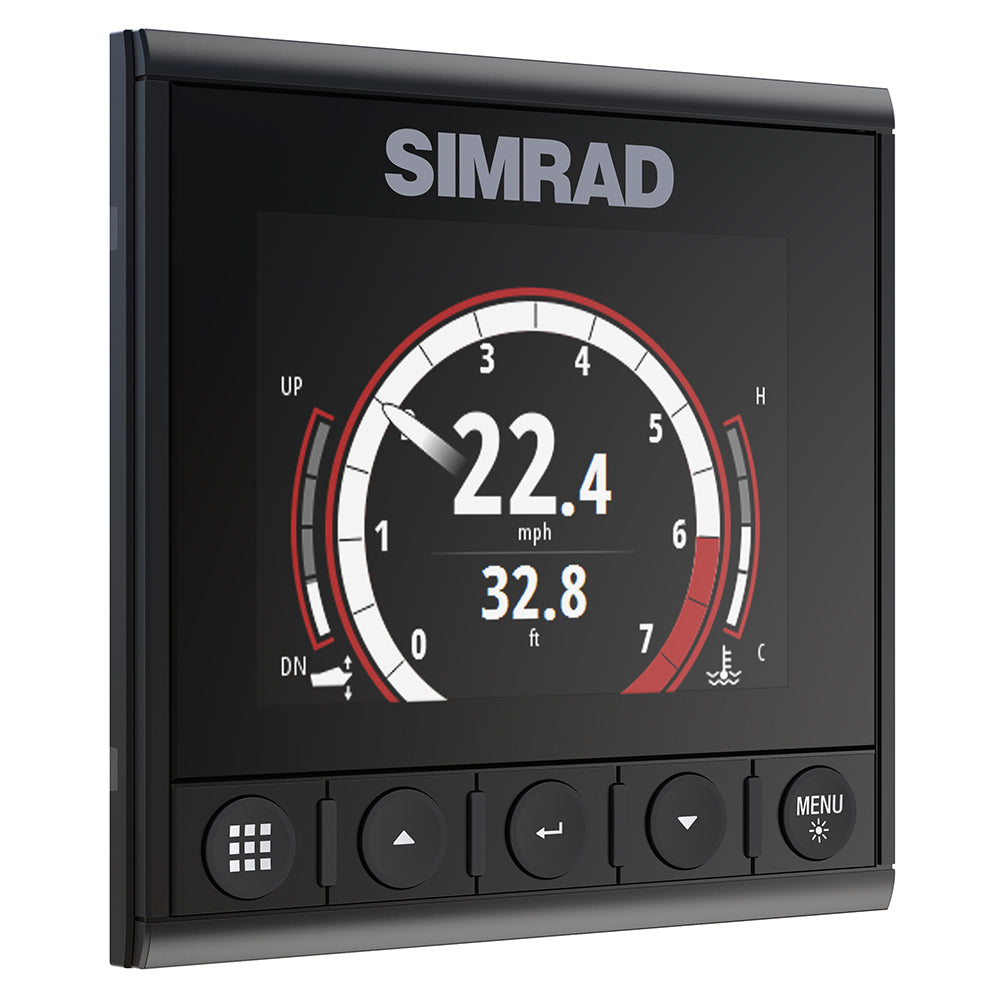

The Simrad IS42 Smart Instrument Display (000-13285-001) shows wind, speed, depth, engine data and autopilot status on a full-color display. Add the OP12 keypad to use it as an autopilot controller.

IS42 Smart Instrument Digital Display

The IS42 is a smart multi-purpose instrument featuring a full color display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.

Features:

• Optically bonded 4.1" color display

• Multi-purpose digital instrument

• Display wind, speed, depth, engine data, autopilot status and more

• Intuitive operation

• Easy installation

• Add an OP12 keypad for full Simrad autopilot control

• Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers

• Low-profile glass helm design

• Low power consumption

• Certified NMEA 2000® connectivity

• Dimensions: 118 x 115 x 28mm (4.6" x 4.5" x 1.1")

• Weight: 0.32kg (0.7lbs)

• Power Consumption: 1.8 Watts (MAX)

• Network Load: 3 LEN

• Color: Black

• Display Size: 4.1" (diagonal). 4:3 Aspect ratio

• Display Type: Transmissive TFT-LCD, bonded. White LED backlight

• Dsiplay Resolution: 320 x 240 pixels

• Illumination: White for day mode. Red, green, blue or white for night mode

• Environmental Protection, Waterproof: IPx7

• Environmental Protection, Humidity: up to 95% RH

• Compass Safe Distance: 300mm (1.0")

• Temperature Operating: -15 to +55°C (5°F to +131°F)

• Temperature Storage: -30 to +70 °C (-22 to +158° F)

Product Details

• Manufacturer: Simrad
• Part Number: 000-13285-001
• Product Type: Instruments
• Condition: New

Specifications:

• Instrument Function: Multifunction
• Box Dimensions: 5"H x 7"W x 10"L WT: 2.32 lbs
• UPC: 9420024155103

Important Fitment Information

Please verify that this product is compatible with your boat and your Simrad equipment before ordering. Always follow Simrad's installation instructions.

Final Sale: This item is final sale and not eligible for return. Please confirm compatibility before ordering. Questions? Call 954-946-1451.
