Lowrance Yamaha Engine Interface Cable – 120-37 | OEM
Sale price
$112.99
Regular price
$126.00
Skip to product information
Outputs:
Yamaha 4-Stroke 50-250 | 2-Stroke HDPI 150-350
RPM
Alternator
Voltage
Engine Hours
Engine Temperature
Fuel Pressure
Fuel Rate
Oil Pressure
Trim*
Water Pressure
*Digital trim must be connected by a Yamaha dealer.
*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.
Works with: NMEA 2000 Compliant Units
Lowrance Yamaha Engine Interface Cable – 120-37 | OEM
CAM-32084
Sale price
$112.99
Regular price
$126.00
Lowrance Yamaha Engine Interface Cable – 120-37

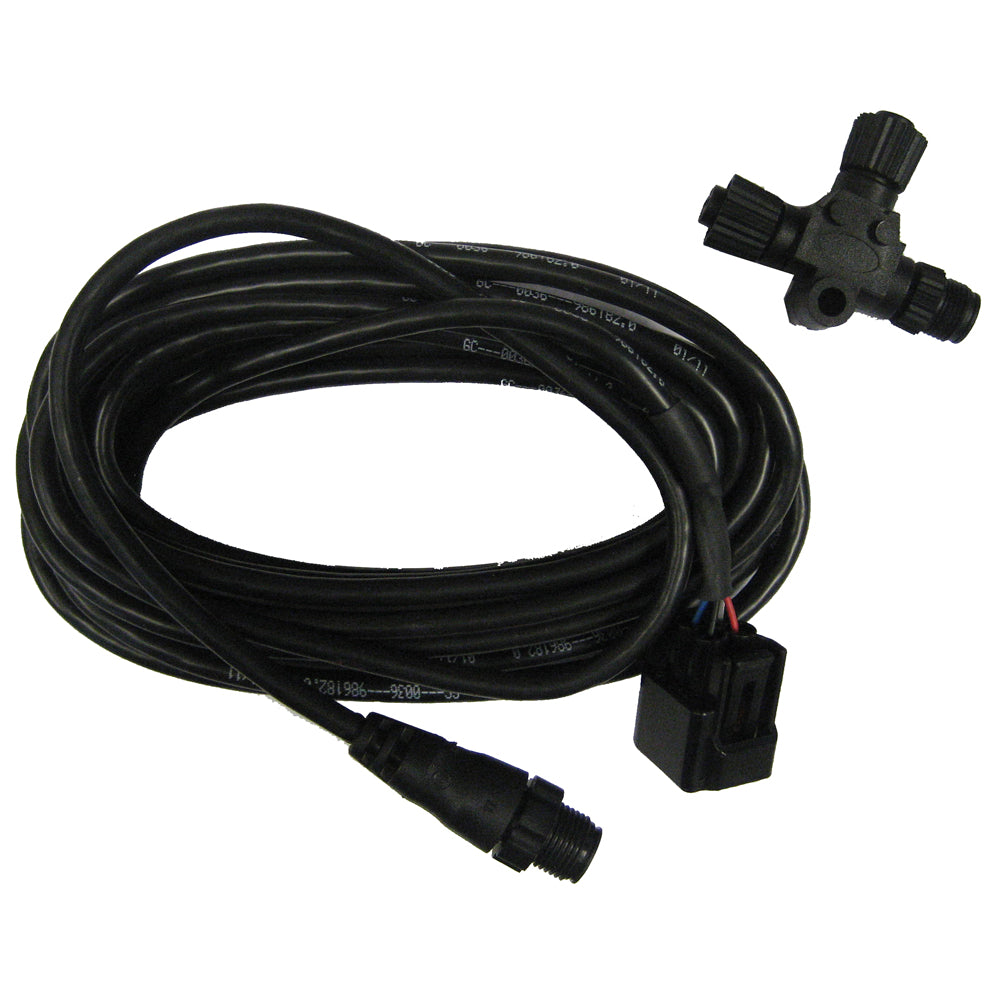

The Lowrance Yamaha Engine Interface Cable (120-37) brings Yamaha engine data such as RPM, temperature, fuel rate and engine hours onto your NMEA 2000 network. It's for 2006 and newer Yamaha engines without Command Link Plus and includes a 15' cable and T-connector.
Yamaha Engine Interface Cable
Yamaha engine interface cable 4.5 m (15 ft) and T-connector
Connects to Yamaha engines without Yamaha CommandLink Plus system.
- 2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.
- 2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.
Outputs:
Yamaha 4-Stroke 50-250 | 2-Stroke HDPI 150-350
RPM
Alternator
Voltage
Engine Hours
Engine Temperature
Fuel Pressure
Fuel Rate
Oil Pressure
Trim*
Water Pressure
*Digital trim must be connected by a Yamaha dealer.
*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.
Works with: NMEA 2000 Compliant Units
Product Details
- Manufacturer: Lowrance
- Part Number: 120-37
- Product Type: NMEA Cables & Sensors
- Condition: New
Specifications:
- Data Interface: NMEA 2000
- Cable Length (Meters): 4.5m
- Box Dimensions: 2"H x 4"W x 10"L WT: 0.45 lbs
- UPC: 042194529820
Important Fitment Information
Please verify that this product is compatible with your boat and your Lowrance equipment before ordering. Always follow Lowrance's installation instructions.
