Garmin Signal VHF 400 Marine VHF Radio with Built-In AIS Transponder – 010-02951-00 | OEM

Garmin Signal VHF 400 Marine VHF Radio with Built-In AIS Transponder – 010-02951-00

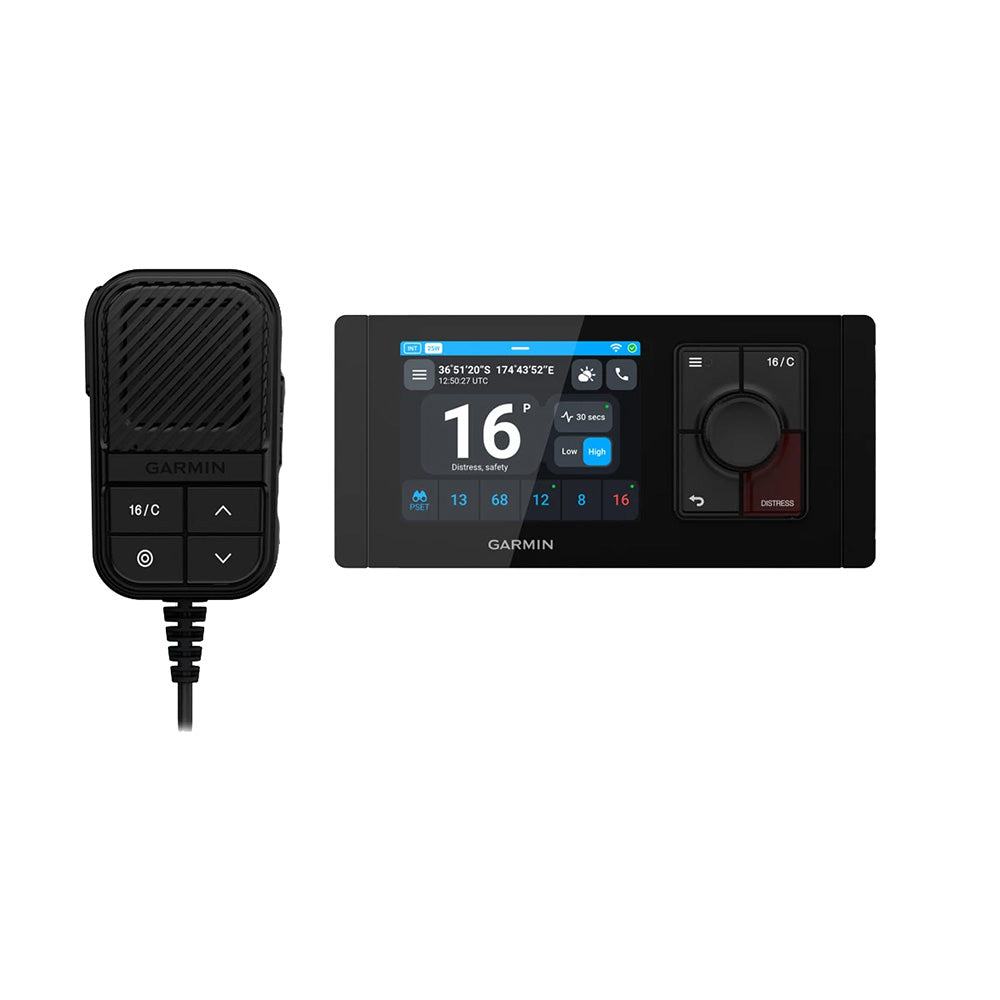

The Garmin Signal™ VHF 400 Marine VHF Radio with Built-In AIS Transponder (010-02951-00) brings clear communication, AIS transmit and receive, and Garmin's cleanest audio experience to your helm.

Built-In AIS

Built-in AIS transmit and receive capability shows the range, course, speed and crossing situation of other AIS-equipped vessels around you to help you navigate.

Sleek Design

The compact, modern design has edge-to-edge glass and takes up minimal space at the helm.

Clear and Simple Communication

Automated squelch eliminates unnecessary radio noise. If you miss a message, replay it with VHF audio playback, and advanced watch modes make it easy to monitor multiple channels.

Stay Connected

The distress button quickly sends a distress signal to nearby vessels, using Class D DSC to automatically transmit crucial information that can help emergency responders. Intuitive DSC features also make it fast to contact other AIS-equipped vessels: select the vessel on the AIS plotter view and call them with a tap.

Easy to Update

Configure the radio, program the MMSI number and get over-the-air software updates with the ActiveCaptain® smartphone app through built-in Wi-Fi® connectivity.

Installation Is a Breeze

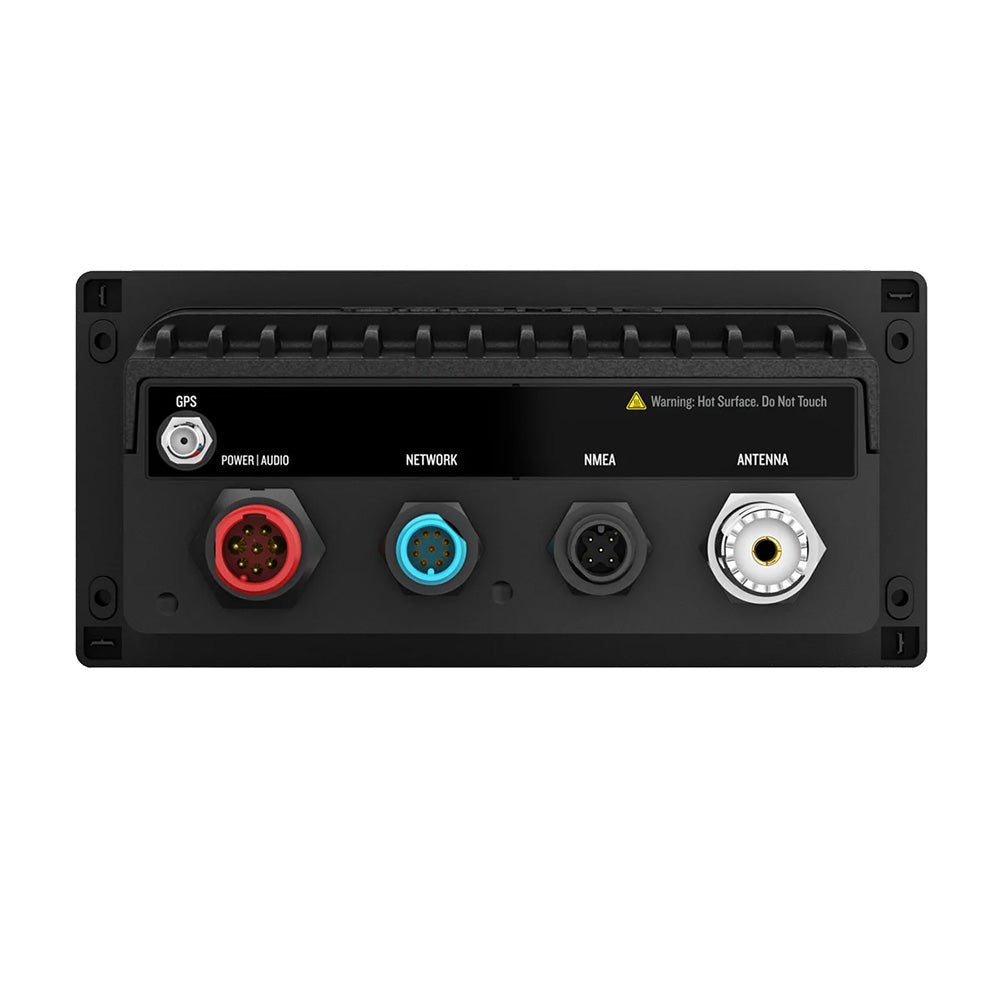

VHF/DSC/AIS features need only a single VHF antenna, and the GPS antenna/receiver is built into the unit. Chartplotter integration is seamless through the NMEA 2000® network and Garmin BlueNet™ network.

Adaptive Noise Cancellation

Advanced noise cancellation uses machine learning algorithms to remove wind, wave and engine noise for Garmin's cleanest audio experience.

Automated Squelch

Radio activity is constantly monitored to eliminate unnecessary noise and static, with the option of manual fine-tuning.

Advanced Watch Modes

All VHF channels are continuously scanned for activity in the background, so you can keep watch on channel 16 and all your favorite preset channels at the same time.

VHF Audio Playback

Didn't catch that message? Replay it with VHF audio playback and listen to audio messages for up to 3 minutes on any channel.

General Specifications

• Head unit size: 75 x 160 x 104 mm (3.0" x 6.3" x 4.1")
• Fist mic size: 100 x 60 x 31 mm (3.9" x 2.4" x 1.2")
• Operating voltage: 9.6 - 32 VDC
• Water rating: IPX7
• Display type: IPS LCD, capacitive touch
• Display size: 3.5" (89 mm)
• Display resolution: 640 x 480 pixels
• Operating temperature: –20° to 55° C (–4° to 131° F)
• Inland waterways (ATIS)
• Backlight: 1,000 nits

VHF Radio Specifications

• Region: all U.S., Canadian and international marine channels; NOAA weather channels
• VHF frequency range Tx: 156.025–162.025 MHz
• VHF frequency range Rx: 156.025–163.275 MHz
• VHF transmit power (max): 25 W, 1 W (high, low)
• Transmitter frequency tolerance: +/-0.3 kHz
• Adjacent channel power: more than 70 dB
• Spurious emissions: less than –80 dBc (at 25 W)
• Sensitivity (12 dB SINAD): -118 dBm (-11 dBu/0.28 uV)
• Adjacent channel selectivity: 80 dB
• Spurious response: more than 75 dB
• VHF intermodulation: more than 75 dB
• Max antenna gain: 6 dBi
• Remote station support: RM 100 (x5)

DSC Specifications

• Class: Class D
• Sensitivity (1% BER): -117 dBm (-10 dBu/0.32 uV)
• Adjacent channel selectivity: 80 dB
• Spurious response: more than 75 dB
• Intermodulation: more than 75 dB

AIS Specifications

• Class: SOTDMA Class B
• Long-range position reports (Msg 27)
• Frequency range: 156.025 – 162.025 MHz
• AIS power output: 5 W
• AIS sensitivity (20% PER): -115 dBm (-8 dBu/0.4 uV)
• Adjacent channel selectivity: 80 dB
• Spurious response: more than 75 dB
• Intermodulation: more than 65 dB

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form. **

Click here to download form.

IN THE BOX

• Garmin Signal™ VHF 400 head unit
• Fist mic
• Sun cover
• Head unit power and external audio cable with fuse (2 m)
• Fist mic power cable with fuse (2 m)
• Drop cable for NMEA 2000® network (2 m)
• Mounting hardware
• Mounting template
• Documentation

Product Details

• Manufacturer: Garmin
• Part Number: 010-02951-00
• Product Type: VHF - Fixed Mount
• Condition: New

Specifications:

• AIS: Yes
• Built-In GPS: Yes
• Hailer: Yes
• Intercom Capability: Yes
• NMEA 2000: Yes
• Box Dimensions: 7"H x 9"W x 10"L WT: 4.62 lbs
• UPC: 753759332365

Important Fitment Information

Please verify that this product is compatible with your boat and your Garmin equipment before ordering. Always follow Garmin's installation instructions.

Final Sale: This item is final sale and not eligible for return. Please confirm compatibility before ordering. Questions? Call 954-946-1451.
