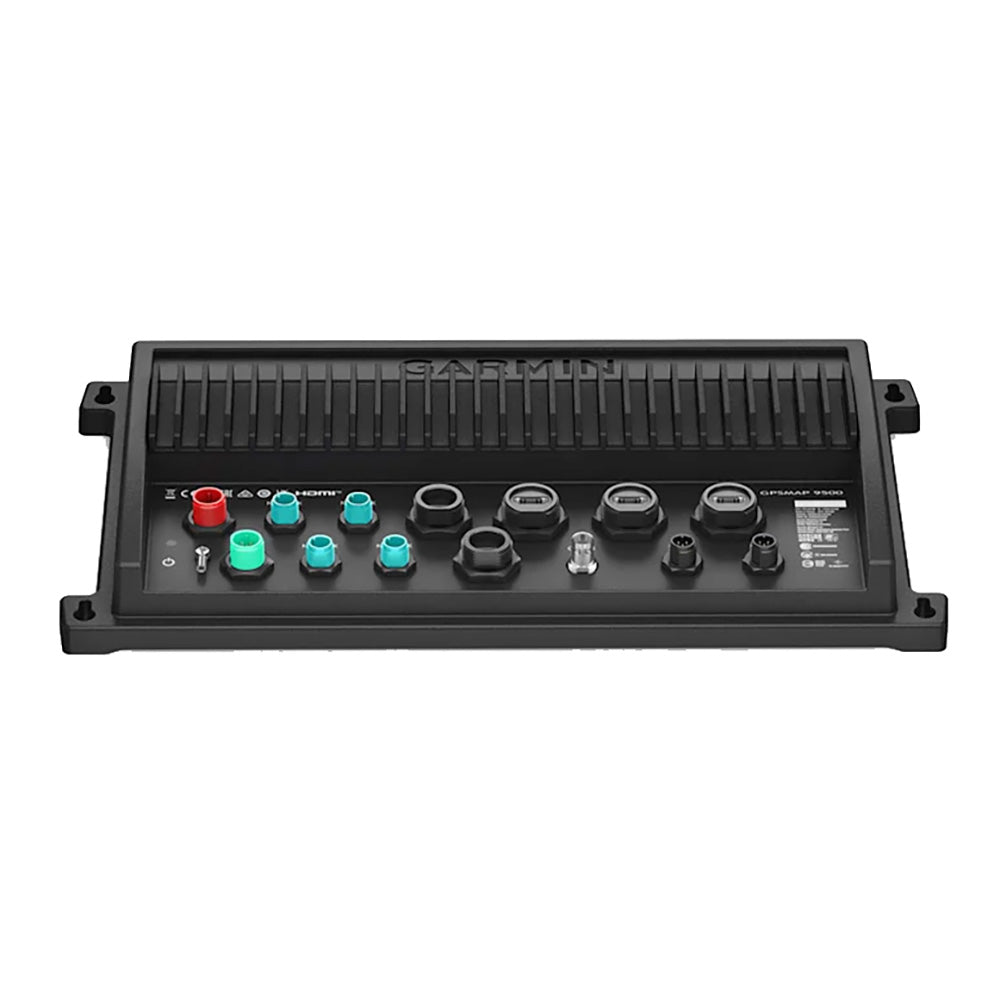

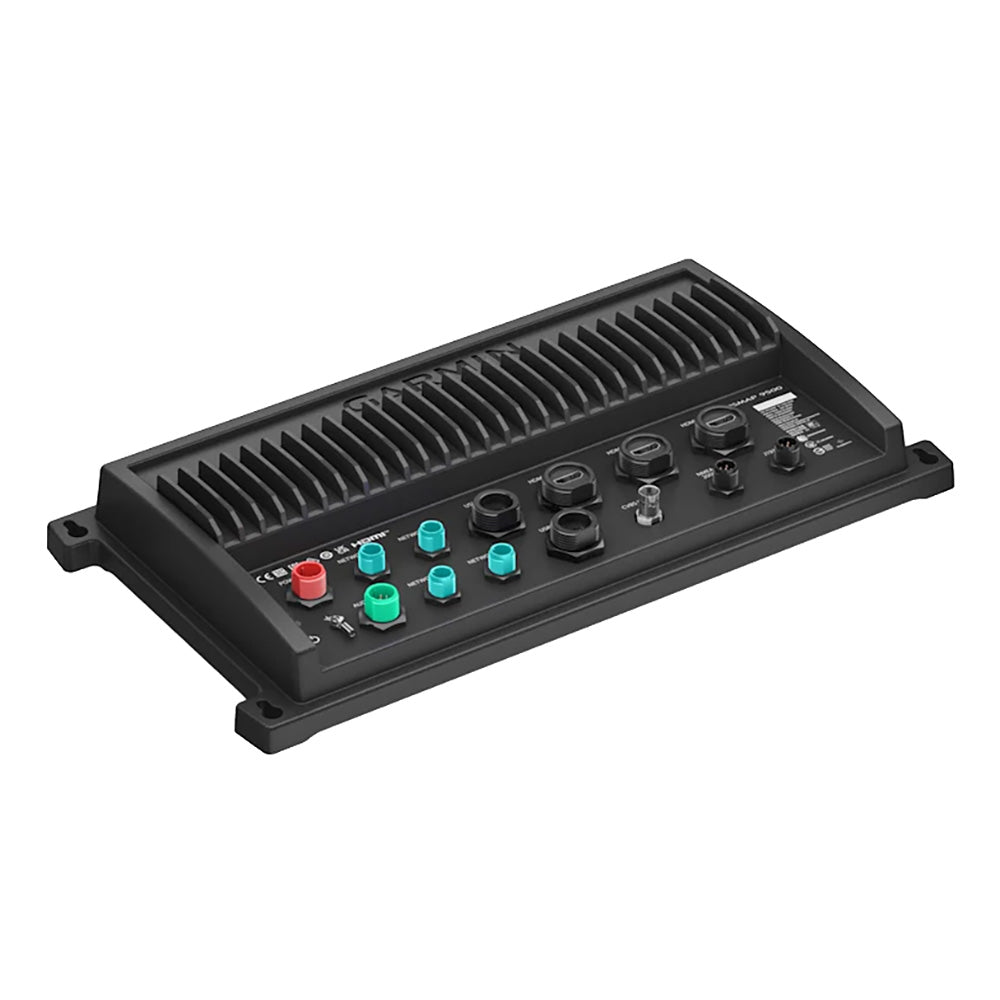

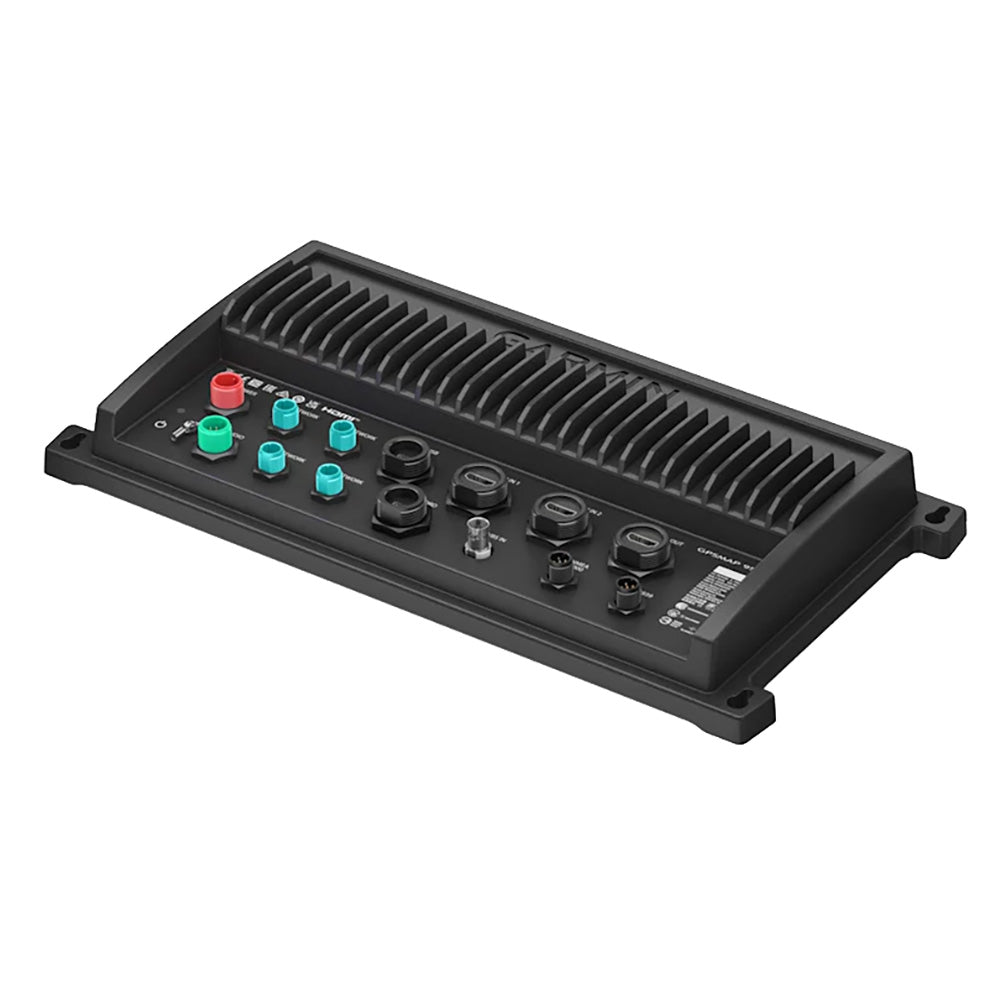

Garmin GPSMAP 9500 Black Box – 010-02677-00

Plot your paradise with a premium black box system. The Garmin GPSMAP® 9500 Black Box (010-02677-00) connects to your HDCP-compliant monitors and brings premium chartplotter performance to the dash of your boat.

Key Features

• Connects to third-party HDCP-compliant monitors through HDMI, with USB DRD capability for touchscreen support
• Up to 7 times faster processing power than previous generations for superior performance
• Builds extensive networks with reliable connectivity and gigabit speeds on the new Garmin BlueNet™ network
• Integrates with the Garmin suite of sonar options, including LiveScope™ and Panoptix™ sonars, GSD™ sonar modules1 and more
• Takes command of monitoring, control and automation systems with support for EmpirBus™ systems and other third-party solutions through OneHelm™ integrations
• High-quality entertainment with video integration through HDCP distribution

For Captains Who Demand the Best

With up to 7 times faster processing power than previous generations, the GPSMAP 9500 draws charts quickly and calculates routes with lightning speed, while adding comprehensive connectivity throughout your vessel.

Create a Fully Integrated Helm

Build an extensive helm network that links multiple chartplotters, monitors, radars, cameras and sonars, with up to 10 times faster networking speeds and minimal lag. Keep tabs on engine performance with extensive engine integration, and control your autopilot from any compatible chartplotter on the network. Connect cameras to see footage directly on the chartplotter, including a bird's-eye view of your vessel with support for the Surround View Camera System2. Audio and video integration lets you show and hear the same video across the screens and speakers on your network.

Connect with Your System

Integrated Wi-Fi®, BLUETOOTH® and ANT® technologies connect compatible devices to your system and enable easy wireless software updates through the ActiveCaptain® app on your compatible smartphone or tablet. Use your compatible Garmin smartwatch to remotely control key MFD features, including chart zoom, layout shortcut, Fusion® stereo, autopilot and more, and stream important data to your wrist. You can even control chartplotters with spoken commands through your compatible headset.

Fish with Stunning Detail

Full support for the Garmin suite of sonar options1, including CHIRP traditional sonar, GSD™ 28 xCHIRP high-powered sonar, ClearVü™ and SideVü™ scanning sonars, and Panoptix™ PS70 or LiveScope™ XR live sonar. You can also add comprehensive fishing data with the Fish Mapping™ feature from SiriusXM® Radio (required accessory sold separately; subscription required).

Add the Best Chart Coverage

Support for detail-rich mapping of coastal waters, lakes and rivers in your region with Garmin Navionics+™ and Garmin Navionics Vision+™ cartography. Garmin Navionics+ charts make it easy to plot your course with high-resolution depth range shading, 1' contours and more, and Garmin Navionics Vision+ charts add premium relief shading for a clearer view of bottom structure, satellite imagery for superior situational awareness, and more. Both include Auto Guidance+™ technology3 for suggested dock-to-dock routing. Charts are constantly enhanced with new and amended content, with thousands of updates made every day, and your purchase includes a 1-year subscription to daily chart updates through the ActiveCaptain app and much more.

General

• Dimensions: 15.1" x 7.8" x 1.9" (38.3 x 19.8 x 4.7 cm)
• Weight: 3.49 lbs (1.583 kg)
• Waterproof rating: IPX7
• Display type: none (external display)
• Display size: none (external display)
• Supported display resolutions: 1920x1080, 1024x600, 1280x800, 1920x1200, 3840x2160, 1024x768, 1280x1024 pixels

Maps and Memory

• Accepts data cards: no (USB card reader required)
• Compatible with Garmin SD card reader: yes
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100

Sensors

• GPS, GLONASS, Galileo and BeiDou: yes
• NMEA 2000 compatible: yes
• NMEA 0183 compatible: yes
• WAAS support: yes
• Multi-band, multi-constellation GPS: yes

Optional Map Support

• Garmin Navionics+™: yes
• Garmin Navionics Vision+™: yes
• Standard mapping: yes
• Garmin Quickdraw Contours: yes
• Raster chart support: yes

Chartplotter Features

• SmartMode compatible: yes
• AIS: yes
• DSC: yes
• Supports Fusion-Link™ compatible radios: yes
• GSD black box sonar support: yes
• GCV black box sonar support: yes
• ActiveCaptain® compatible: yes
• GRID (Garmin Remote Input Device) compatible: yes
• Wireless remote compatible: yes
• Sailing features: yes
• Spoken audio alerts: yes
• OneHelm support: yes

Electrical

• Power input: 10 to 35 Vdc
• Typical current draw at 12 Vdc: 2.0A
• Maximum current draw at 12 Vdc: 3.3A
• Maximum power usage at 10 Vdc: 40W

Sonar

• Displays sonar: yes
• Traditional sonar (dual frequency/beam): yes (with compatible black box sonar)
• ClearVü: yes (with compatible black box sonar)
• SideVü: yes (with compatible black box sonar)
• Panoptix™ sonar: yes
• LiveScope: yes

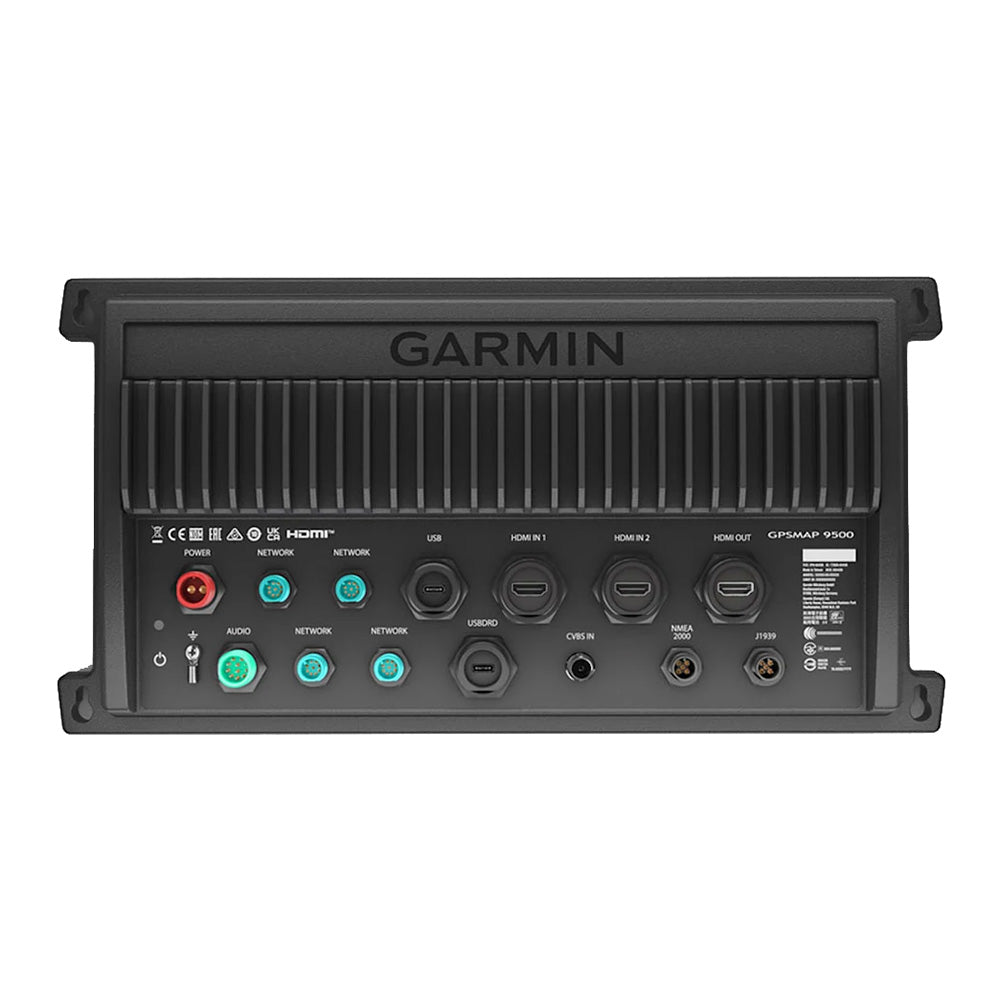

Connections

• NMEA 2000® ports: 1
• NMEA 0183 input (RX) ports: 1
• NMEA 0183 output (TX) ports: 1
• Video input ports: 1 (BNC composite); 2 HDMI (HDCP compliant)
• Video output ports: 1 HDMI
• J1939 ports: 1
• Garmin BlueNet network ports: 4
• USB ports: yes (2x USB-C)
• Bluetooth® pairing: yes
• ANT+ connectivity: yes
• Garmin Wi-Fi network (local connection): yes
• Audio output: yes

1Sonar black box and transducers sold separately

2Required accessory sold separately

3Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

In The Box:

• GPSMAP 9500 Black Box
• Power cable
• Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® Network
• Mounting hardware
• Documentation

Product Details

• Manufacturer: Garmin
• Part Number: 010-02677-00
• Product Type: Network Cables & Modules
• Condition: New

Important Fitment Information

Please verify that this product is compatible with your boat and your Garmin equipment before ordering. Always follow Garmin's installation instructions.
