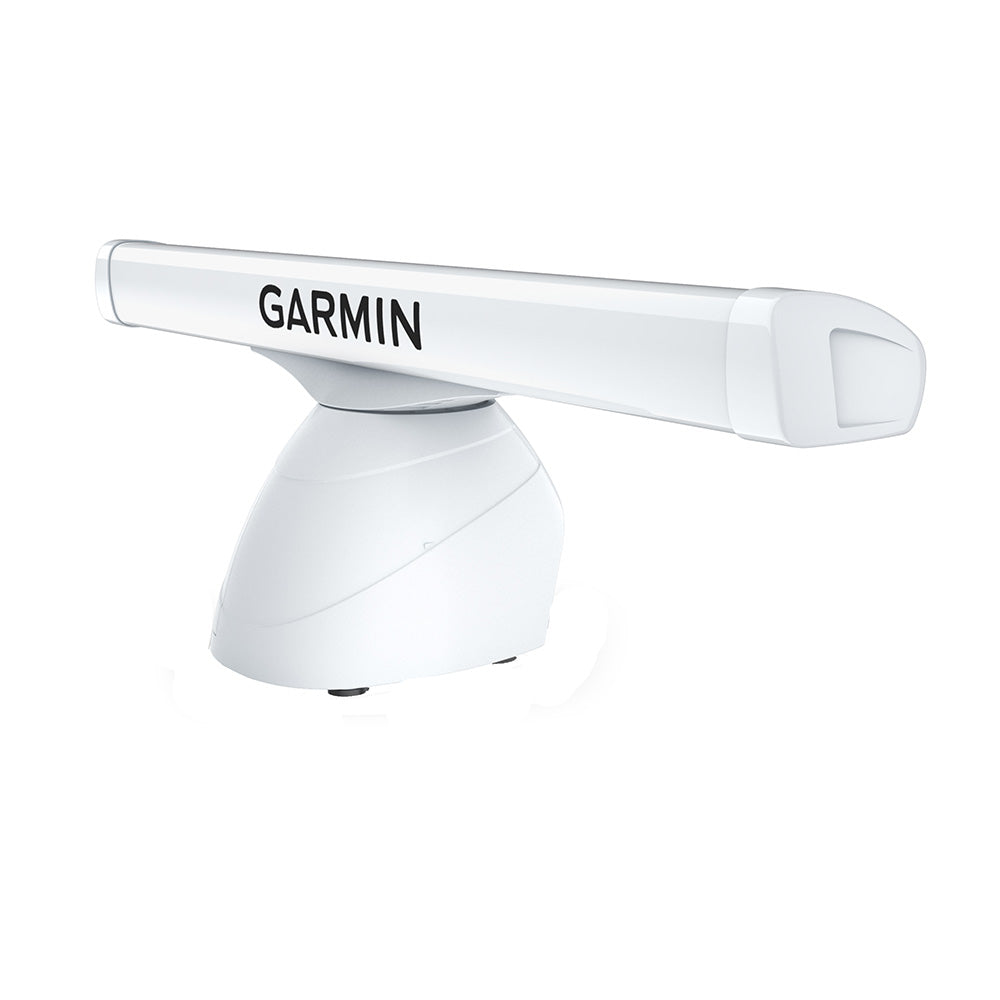

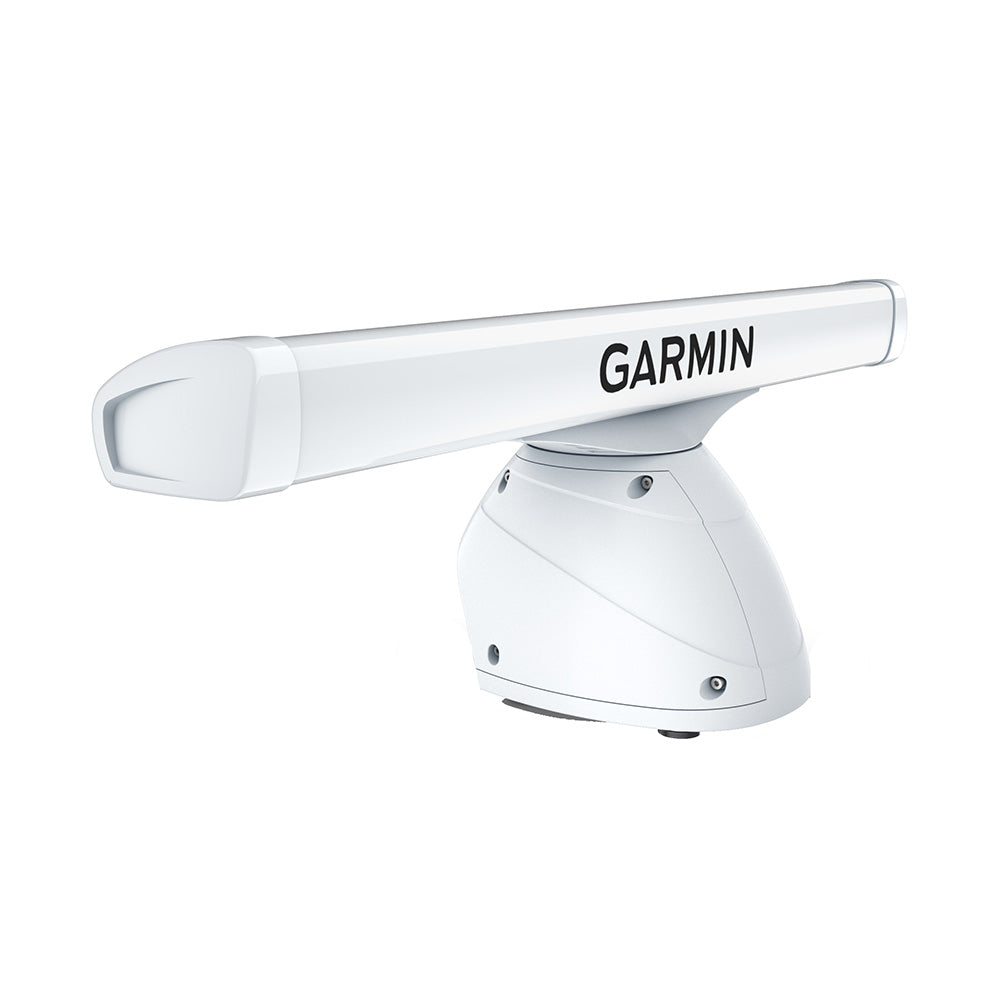

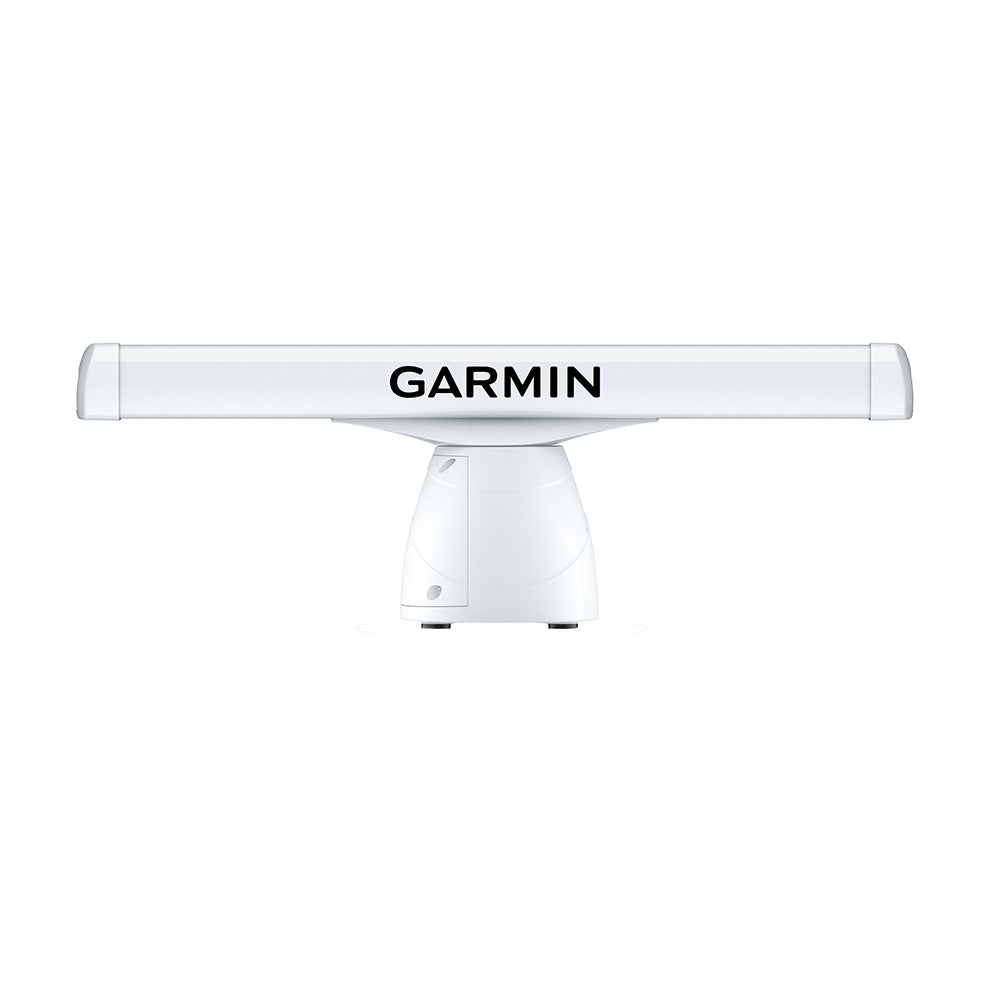

Garmin GMR 1234 xHD3 4 Open Array Radar Pedestal, 12kW – K10-00012-26

Scan with the magnetron power of Garmin open-array radar. The Garmin GMR 1234 xHD3 4’ Open Array Radar, 12kW (K10-00012-26) combines high-definition imaging with the latest Garmin platform technology in a robust 4’ open-array radar, delivering superior weather, obstacle and traffic detection for mariners cruising or fishing offshore.

Key Features

• Up to 96-nautical mile range
• Scan averaging technology
• Improved target-size processing
• Split-screen dual-range display
• 100-knot commercial grade wind rating1
• Quiet open-array drive motor

Radar Technology

• Scan averaging: a first for Garmin magnetron radar, it filters out sea clutter and interference to enhance detection and display of consistent targets
• Angular target-size adjustment: pulse expansion and angular target-size processing optimize on-screen object shapes for easier interpretation at every range scale
• True echo trails: shows a historical trail of boats on the water with relative motion removed, so you can quickly spot moving targets and potential collision threats
• Dual range with overlay: one antenna provides split-screen, side-by-side images on your compatible chartplotter, with independent range settings and controls for close and long range; overlay either or both on a chart
• Dynamic auto gain: automatically sets optimum levels for harbors, near shore and open offshore water
• Radar overlay: see radar images overlaid on your chartplotter's map screen (with appropriate sensors, sold separately)
• High-resolution radar: narrow horizontal beamwidth and high antenna gain help you pick out distant targets
• Dual-radar support: provides redundancy and lets each display pull data from different sources
• Dynamic sea filter: automatically adjusts sea clutter for calm, medium and rough conditions
• Auto bird gain: find flocks of birds at the surface, where baitfish are also likely to be
• MARPA target tracking: track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately)
• Guard zone: set a safety zone and get an alarm when an object enters it
• Range and bearing cues: variable range markers and electronic bearing lines give quick distance and bearing measurements to vessels and land

Includes

• GMR xHD3 12 kW open array radar with 4’ antenna
• Power cable (15 m/49.21 ft)
• BlueNet™ network cable (15 meters)
• BlueNet™ Network to RJ45 adapter cable
• Mounting hardware kit and template
• Installation instructions

Dimensions and Weight

• 4' array: 1325 x 122 x 170 mm / 52.2" x 4.8" x 6.7"
• Pedestal: 520 x 328 x 314 mm / 20.5" x 12.9" x 12.4"
• 4' array and pedestal: 27.7 kg

Specifications

• Waterproof: IPX6
• Maximum wind load: 80KT (100KT with optional voltage converter upgrade)
• Antenna length: 48 in. (122 cm)
• Rotation speed: 24 and 48 RPM
• Beam width: 1.8° horizontal, 23° vertical
• Maximum range: 96 nautical miles
• Minimum range: 20 meters
• Radar type: open-array

Electrical

• Power input: 10-32 V DC
• Power consumption (standby): 18 W
• Typical power consumption, transmitting (normal mode): 70 W
• Transmit power: 12 kW

14-kW versions require optional equipment (sold separately) for 100-knot wind rating

Product Details

• Manufacturer: Garmin
• Part Number: K10-00012-26
• Product Type: Radars
• Condition: New

Specifications:

• Array Size (Inches): 48"
• Power - Output: 12kW
• Range - Max (Miles): 96nm
• Box Dimensions: 8"H x 11"W x 56"L WT: 92.3 lbs
• UPC: 753759309961

Important Fitment Information

Please verify that this product is compatible with your boat and your Garmin equipment before ordering. Always follow Garmin's installation instructions.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Final Sale: This item is final sale and not eligible for return. Please confirm compatibility before ordering. Questions? Call 954-946-1451.
