Garmin Compact Reactor 40 Hydraulic Autopilot with GHC 50 Shadow Drive Technology Pack with GHC 50 Shadow Drive – 010-02794-08 | OEM

Garmin Compact Reactor 40 Hydraulic Autopilot with GHC 50 Shadow Drive Technology Pack with GHC 50 Shadow Drive – 010-02794-08

Every captain needs a co-pilot. The Garmin Compact Reactor 40 Hydraulic Autopilot with GHC 50 and Shadow Drive (010-02794-08) is an entry-level hydraulic autopilot designed for boats less than 25’ long. It gives you the extra hand you need so you can explore worry-free, and this pack adds both the GHC™ 50 touchscreen autopilot instrument and Shadow Drive™ technology.

Key Features

• Built for hydraulically steered systems
• Solid-state 9-axis AHRS, so you can mount it nearly anywhere, in any orientation
• Reacts to sea conditions to keep you on course, even when pitching or rolling
• Fast, easy calibration and flexible mounting options for simple installation
• Control your autopilot from anywhere on your boat with a compatible Garmin chartplotter
• Includes the GHC™ 50 autopilot instrument and Shadow Drive

Corepack Compatibility

This corepack is an ideal autopilot solution for single-engine outboard boats less than 25’ long1. It takes over the job of holding the wheel to maintain course, especially when cruising at moderate to high speeds2.

Solid-State 9-Axis AHRS

The advanced 9-axis AHRS lets you mount the Reactor 40 nearly anywhere, in any orientation, while reducing power consumption and minimizing heading error.

Wireless Remote Capabilities

Control your autopilot from anywhere on board with compatible Garmin devices, including the Reactor autopilot remote and select quatix® marine smartwatches (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).

Shadow Drive™ Technology

Shadow Drive gives you more freedom when maneuvering by automatically disengaging the autopilot when you turn the wheel.

GHC 50 Autopilot Instrument

The included GHC 50 adds a dedicated touchscreen autopilot display to your helm and shares data and settings with Garmin MFDs and other installed Garmin devices.

Powerboat and Sailing Features

Connected to a compatible Garmin chartplotter, every Reactor 40 corepack offers powerboat and sailing features, including heading hold and step turns, plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can also use route following and Auto Guidance+™ features3.

Specifications

• Unit dimensions (WxHxD): 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)
• Pump dimensions (LxWxH): 6.6" x 3.9" x 3.3" (16.8 x 10.0 x 8.5 cm)
• NMEA output: NMEA 2000
• Supply voltage: 10V to 20V
• Operating temperature: -15° C to 70° C (5° F to 158° F)

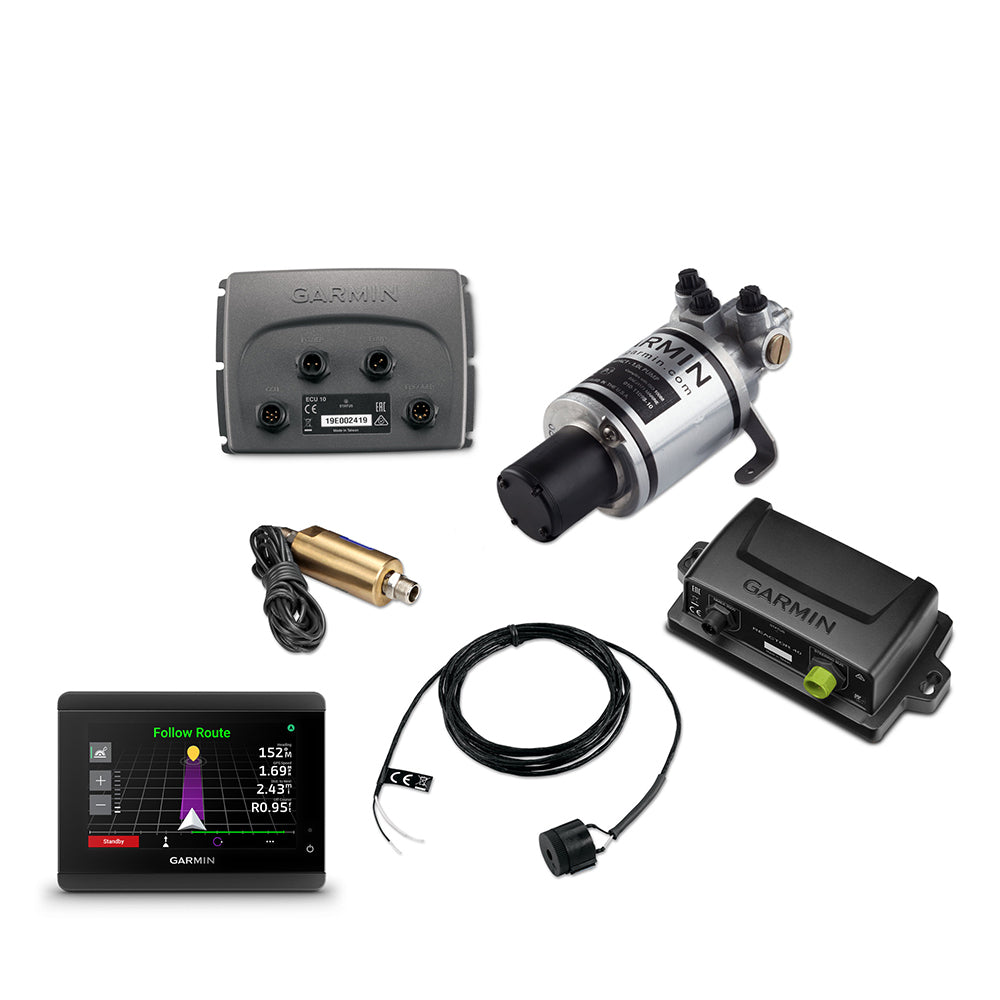

What's In The Box

• GHC 50 helm control display
• Shadow Drive
• Reactor 40 CCU (Course Computer Unit)
• 1.0 L Pump
• ECU (Electronic Control Unit)
• ECU power cable
• Interconnect cable
• Buzzer
• NMEA 2000® drop cables (2 meters)
• NMEA 2000 power cable
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation

1 Requires a compatible Garmin chartplotter (sold separately)

2 Not recommended for fishing or applications that require holding heading while trolling at low speeds or operating in rough waters. For applications that require precise heading control, Garmin's higher-performance Reactor 40 models are recommended. Compact Reactor uses a gear pump design with limited performance relative to similar flow piston pumps. Not recommended for power assist installs, engines above 150 horsepower or boats with more than 12-degree deadrises. Mount the pump within 6’ of the steering cylinder for best results.

3 Auto Guidance is for planning purposes only and does not replace safe navigation operations

Product Details

• Manufacturer: Garmin
• Part Number: 010-02794-08
• Product Type: Autopilots
• Condition: New

Important Fitment Information

Please verify that this product is compatible with your boat and your Garmin equipment before ordering. Always follow Garmin's installation instructions.

Final Sale: This item is final sale and not eligible for return. Please confirm compatibility before ordering. Questions? Call 954-946-1451.
