Cracking the Code: What Your Yamaha Propeller Series Actually Means
If you’ve ever looked at the stamped letter on the barrel of your boat’s propeller and wondered if it was a part number or just a random character, you aren't alone. In the marine world, that single letter—your Propeller Series—is the secret key to your engine's performance.
Understanding these series is the difference between a propeller that fits perfectly and one that could potentially damage your gearcase. As we prepare to launch our full storefront here in Pompano Beach, we want to ensure you have the technical "know-how" to select the right gear from day one.
The Breakdown: Series vs. Gearcase
The propeller series isn't about speed or blade style; it’s about fitment. Specifically, it relates to the diameter of your engine's gearcase and the spline count of your prop shaft. Matching the propeller series to the gearcase is essential for proper performance.
The Complete Yamaha Series Guide

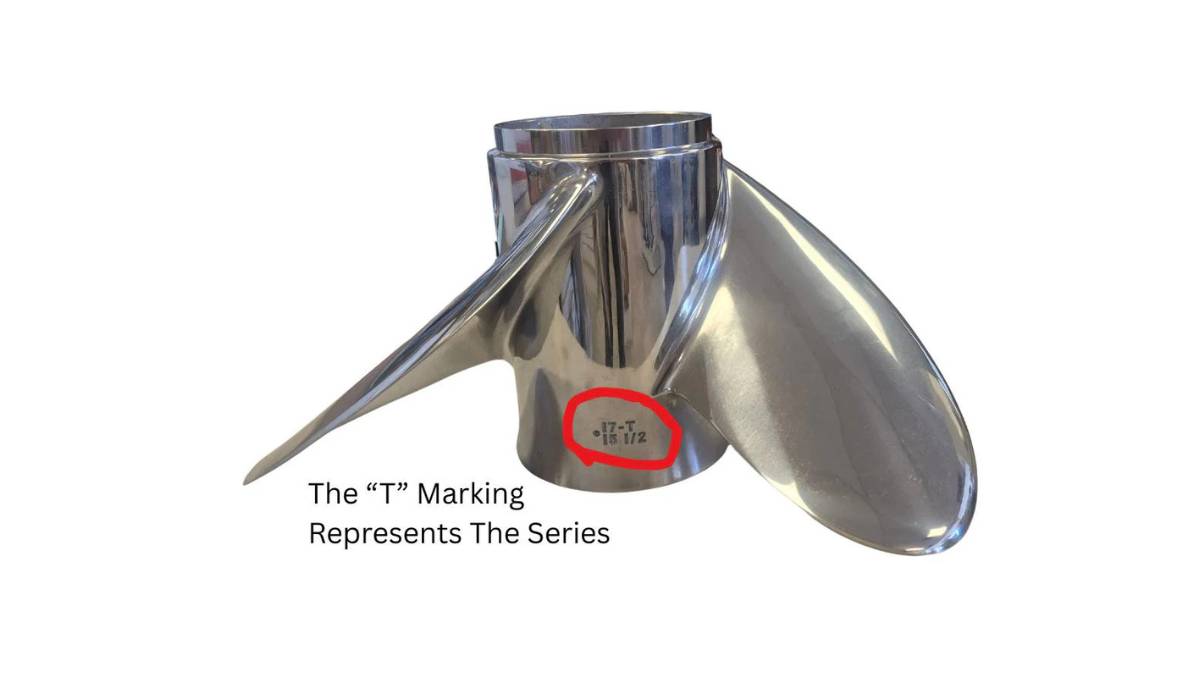

To find your series, look for the letter stamped on the propeller hub. Use this comprehensive list to match your model to the correct diameter and spline count:
-
Series A: Fits 2 HP models; 1.75" gearcase; 9-spline/Shear Pin setup.
-
Series BS & B: Fits F2.5 through 5 HP models; 2.00" gearcase; 9-spline.
-
Series BA: Fits 4 HP through F6A models; 2.25" gearcase; 7-spline.
-
Series N, R, & J: Fits 6 HP through F20 models; 2.50" gearcase; Spline counts vary from 8 to 10.
-
Series F: Fits 20–30 HP and F25 models; 3.00" gearcase; 10-spline.
-
Series G: Fits 40–55 HP and T25–F60 models; 3.50" gearcase; 13-spline.
-
Series K & KL: Fits 60–130 HP and T50–F115 models; 4.25" gearcase; 15-spline.
-
Series M, ML, T, & TL: Fits 150–350 HP (V6) models; 4.75" gearcase; 15-spline.
-
Series X & XL: Fits F300/F350TR (V8) models; 5.25" gearcase; 17-spline.
-
Series Y: Fits the massive F425 and F450 models; 6.00" gearcase; 18-spline.
Why This Information is Critical
-
Preventing Hub Failure: A propeller with the wrong spline count simply won't install. For example, trying to put a 13-spline "G" series on a 15-spline "K" shaft is a common mistake that leads to frustration at the boat ramp.
-
Hydrodynamics: The gearcase diameter must match the propeller hub to ensure water flows smoothly. A mismatch can cause unnecessary drag or ventilation issues.
-
Performance Matching: Larger V6 and V8 engines require the heavy-duty builds found in those specific series to handle the massive torque they produce.
Expert Tip: The Small Engine Exception
Notice that the Series A is an outlier. Unlike the larger splined shafts, these often utilize a shear pin setup. If you run one of these smaller outboards, always keep a few extra shear pins on the boat—it’s a $5 part that saves you from a very long afternoon of paddling!
Navigating the technical side of marine hardware doesn't have to be a headache. Whether you're running a 2 HP portable or a 450 HP offshore beast, getting the right fit is the first step to peak performance.
